Container bag for the transportation industry 2D/3D

for the storage industry

Product overview

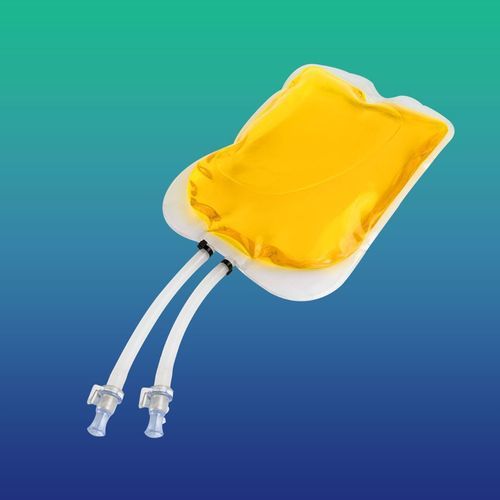

A 2D single-use bag designed for bioprocess applications up to 50 L. These bags are typically used in smaller assemblies and are commonly laid flat (e.g. in rocking setups) or suspended by top insert holes. Support rods can be used to preserve bag shape during hanging or transport.

Standard sizes available

• Available volumes: 50 mL, 250 mL, 500 mL, 1 L, 2 L, 5 L, 10 L, 20 L and 50 L.
• Offered as 2D or 3D single‑use assemblies configured for mixing, handling, storage and transport.

Applications

• Biotechnology: media preparation, storage, mixing and fluid transfer
• Processes requiring high oxygen barrier and single‑use containment

Compliance and certification

• ISO 10993-4 Hemolysis
• ISO 10993-5 Cytotoxicity
• ISO 10993-6 Implantation test
• ISO 10993-10 Irritation and Sensitization tests
• ISO 10993-11 Acute Systemic Toxicity test
• USP <85> Bacterial Endotoxins – LAL test
• USP <87> Biological Reactivity Test in Vitro
• USP <88> Biological reactivity testing, in vivo, class VI
• European Pharmacopoeia tests 3.1.5
• USP <661.1> Polyethylene Physicochemical Tests, Extractable Metals
• Plastic Additives testing

Characteristics

• Multi‑layer film with inert PE fluid contact layer
• Low extractables and leachables
• No animal‑derived components

Product configurations and catalogue numbers
The bags are available with a variety of port/tube terminations and port counts to suit process requirements. Typical port options include PCS and TPE tubes with 1/8" luer locks (male/female), 1/8" end plugs, 3/8" male inserts, 1/4" luer connections and AseptiQuick G fittings. Example catalogue patterns: 2D-050M-0201 (50 mL, dual 1/8" luer), 2D-500M-0301 (500 mL, three‑port 3/8" inserts plus 1/4" luer), 2D-002L-0301 (2 L, three‑port configuration). Full configuration list available on request.

Technical specifications

• Material: multi‑layer film with inert PE contact layer
• Sizes: 50 mL up to 50 L (liter-scale bags as listed)
• Port types: PCS and TPE tubes with various terminations (1/8" luer lock, 1/8" end plugs, 3/8" male insert, 1/4" luer, AseptiQuick G)
• Configurations: single‑use storage, mixing and transport assemblies; options for hanging or supporting with rods
• Regulatory/testing: conforms to listed ISO, USP and European Pharmacopoeia requirements
