Wire mesh conveyor belt Ultrascreen 2000

polyesterPVCfor the food industry

Product overview

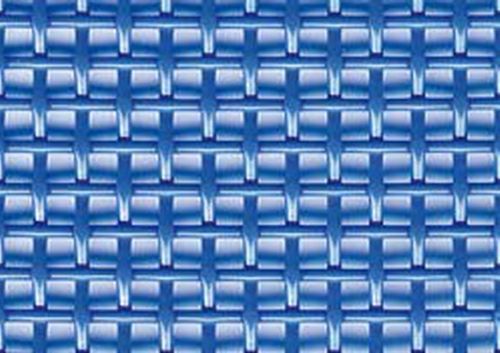

The Ammeraal Beltech Ultrascreen 2000 is a dewatering and drying conveyor belt designed for washed fresh‑cut vegetables and similar food items. Its 2000 μm polyester monofilament mesh combines high open area with controlled air and water permeability to optimise throughput and hygiene.

Key applications

• Dewatering and drying of washed fresh‑cut vegetables
• Cooling processes
• Recycling of wash water and wastewater treatment
• Filtration, sieving and squeezing operations

Benefits

• Multiple mesh sizes available to match product size and process requirements
• Hygienic design supporting food‑contact regulations (EC 1935/2004, FDA) and ISO 22000 requirements

Models / Product variants (key characteristics)

• Ultrascreen 1000
  • Mesh opening: 1000 μm
  • Material: 100% polyester monofilament
  • Colour: Light blue (non‑food colour)
  • Stabilising strips: PVC, Amtel TPE‑E
  • Air permeability: 3640 L/dm²/min at Δp=100 Pa
  • Water permeability: 700–2060 mm/s* (depending on mesh)
  • Open area: 30–60%* (depending on mesh)
  • Recyclable version available
• Ultrascreen 2000
  • Mesh opening: 2000 μm
  • Material: 100% polyester monofilament
  • Colour: Light blue (non‑food colour)
  • Stabilising strips: PVC, Amtel TPE‑E
  • Air permeability: 5080 L/dm²/min at Δp=100 Pa
  • Water permeability: 700–2060 mm/s* (depending on mesh)
  • Open area: 30–60%* (depending on mesh)
  • Recyclable version available
• Ultrascreen 3000
  • Mesh opening: 3000 μm
  • Material: 100% polyester monofilament
  • Colour: Light blue (non‑food colour)
  • Stabilising strips: PVC, Amtel TPE‑E
  • Air permeability: 6000 L/dm²/min at Δp=100 Pa
  • Water permeability: 700–2060 mm/s* (depending on mesh)
  • Open area: 30–60%* (depending on mesh)
  • Recyclable version available
• Ultrascreen 4000
  • Mesh opening: 4000 μm
  • Material: 100% polyester monofilament
  • Colour: Light blue (non‑food colour)
  • Stabilising strips: PVC, Amtel TPE‑E
  • Air permeability: 6540 L/dm²/min at Δp=100 Pa
  • Water permeability: 700–2060 mm/s* (depending on mesh)
  • Open area: 30–60%* (depending on mesh)
  • Recyclable version available
• Ultrascreen PRO (1000 / 2000 / 3000)
  • Positive drive versions with multiple tooth and sprocket options
  • Mesh openings: 1000, 2000, 3000 μm (depending on variant)
  • Improved tracking, reduced assembly tension, lower energy consumption, plug & play installation, lower maintenance and reduced elongation
  • Can be fitted on new positive‑drive conveyors or retrofitted to friction‑driven lines
• Ultrascreen XMD (1000 / 2000 / 3000)
  • XMD edges: X‑ray and metal detectable edges and cleats to reduce foreign‑body contamination risk
  • Mesh openings: 1000, 2000, 3000 μm (depending on variant)
  • Material: 100% polyester monofilament
  • Food standards: EC 1935/2004, FDA
  • Recyclable version available

Technical specifications

• Example article code: USBE000012
• Description (example): Ultrascreen 2000 light blue FG
• Thickness (example): 1.85 mm
• Air permeability (example): 5080 L/dm²/min at Δp=100 Pa
• Water permeability: 700–2060 mm/s* (depending on mesh)
• Open area: 30–60%* (depending on mesh)
• Mesh openings available: 1000, 2000, 3000, 4000 μm
• Material: 100% polyester monofilament
• Stabilising strips: PVC, Amtel TPE‑E
• Food compliance: EC 1935/2004, FDA; supports ISO 22000
• Special options: PRO positive‑drive variants; XMD metal/X‑ray detectable edges
• Recyclable versions available
• Note: performance values (air/water permeability, open area) depend on mesh size
