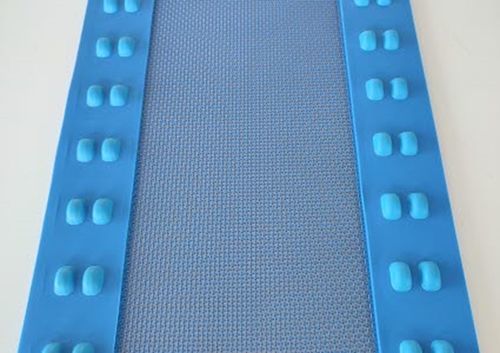

Wire mesh conveyor belt Ultrascreen PRO 2000

PVCin polyester meshtoothed

Product overview
Ammeraal Beltech Ultrascreen PRO 2000 is a positive‑drive conveyor belt designed for de‑watering and drying of washed, fresh‑cut vegetables and similar food products. The polyester monofilament mesh and large open area enable high throughput and effective water removal.

Applications

• De‑watering and drying of washed fresh‑cut vegetables
• Cooling processes
• Recycling of wash water and wastewater treatment
• Filtering, sieving and squeezing operations

Benefits

• 2000 μm mesh opening suitable for medium‑sized particles
• Positive‑drive system for precise tracking and reduced belt tension
• Lower running energy and reduced maintenance needs
• Easy to clean and disinfect; supports ISO 22000 (formerly HACCP)
• Options to reduce foreign‑body risk (XMD metal/X‑ray detectable edges)

Product variants / Key features

• Ultrascreen standard series: examples with mesh openings 1000–4000 μm; 100% polyester monofilament; light blue (non‑food) colour; stabilising strips in PVC or Amtel TPE‑E; recyclable versions available
• Ultrascreen PRO 1000 / PRO 2000 / PRO 3000: positive‑drive versions with a variety of teeth and sprocket styles; designed for retrofit or new positive‑drive conveyors
• Ultrascreen XMD 1000 / XMD 2000 / XMD 3000: versions with metal‑detectable / X‑ray detectable edges and cleats to mitigate contamination risk

Technical specifications

• Commercial designation: Ultrascreen PRO 2000
• Mesh opening: 2000 μm
• Material: 100% polyester monofilament
• Colour: Light blue (non‑food colour)
• Stabilising strips: PVC, Amtel TPE‑E (options available)
• Positive‑drive benefits: improved tracking, less assembly tension, reduced running energy, plug & play, lower maintenance, reduced belt elongation
• Typical air permeability (Ultrascreen 2000): ~5080 L/dm²/min at Δp = 100 Pa
• Water permeability: ~700–2060 mm/s (depending on mesh)
• Open area: ~30–60% (depending on mesh)
• Food contact standards: EC 1935/2004, FDA; hygienic design supports ISO 22000
• Options: XMD metal/X‑ray detectable edges; recyclable versions; retrofit kits for friction‑drive conveyors
