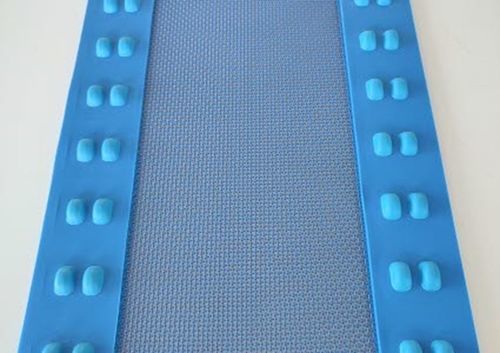

Wire mesh conveyor belt Ultrascreen PRO 1000

EVApolyesterPVC

Main application
The primary application of Ammeraal Beltech Ultrascreen belts is the dewatering and drying of washed, fresh‑cut vegetables. Ultrascreen belts are also used in cooling processes, wash‑water recycling, wastewater treatment, filtration, screening and compression.

Benefits

• Variable mesh openings to suit different product sizes
• Excellent hygienic properties; compatible with ISO 22000 requirements (formerly HACCP)
• Superior tracking performance (PRO version)
• Reduced assembly tension on materials (lower belt elongation)
• Lower energy consumption for conveyor operation
• Plug & Play — no running‑in period
• Reduced maintenance costs
• Easy to clean and disinfect
• Reduced product contamination risk (detectable edge options for some variants)

Ultrascreen PRO — description
The Ultrascreen PRO range is supplied with a variety of tooth profiles and sprocket options to adapt the synchronous (positive‑drive) system to the application. The positive‑drive system delivers optimal guidance, lower assembly tension, reduced energy consumption, rapid commissioning (Plug & Play) and lower maintenance costs. Ultrascreen PRO belts can be fitted on new positive‑drive conveyors or retrofitted to existing friction‑driven conveyors.

Characteristics / Technical specifications

• Model name: Ultrascreen PRO 1000
• Mesh opening: 1000 μm
• Filament: 100% polyester monofilament
• Colour: light blue (non‑food colour)
• Stabilization strips: PVC, Amtel TPE‑E, EVA
• Air permeability: between 13700 and 35000 m³/m²/h at 100 Pa (depending on mesh size)
• Water permeability: 700 to 2060 mm/s (depending on mesh size)
• Open area: 25 to 60% (depending on mesh size)
• Food standards: CE 1935/2004, FDA
• Recyclable version available
• Final belt properties determined by choice of stabilization strips and accessories (sprockets, teeth, edges, flights)
• Detectable edge options (Ultrascreen XMD) available for X‑ray and metal detection on some edges
