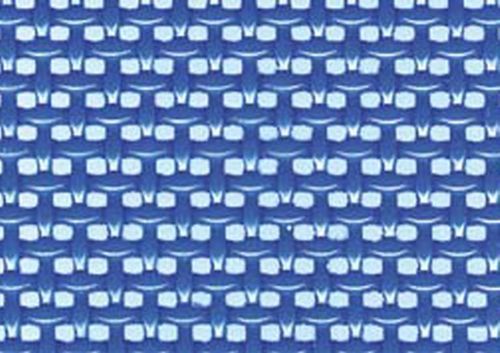

Wire mesh conveyor belt Ultrascreen 1000

polyesterPVCin polyester mesh

Overview
Ammeraal Beltech Ultrascreen conveyor belts are designed primarily for de-watering and drying washed fresh‑cut vegetables. A range of mesh openings and a large open area provide fast drainage and high throughput for food‑processing lines. Ultrascreen belts are also suitable for cooling, wash‑water recycling, wastewater treatment, filtering, sieving and squeezing in fresh‑produce processing.

Applications

• De‑watering and drying of washed fresh‑cut vegetables
• Cooling processes
• Recycling of used washing water
• Wastewater treatment and filtration
• Sieving, separation and squeezing operations

Benefits

• Variable mesh sizes to match different product sizes and process needs
• 100% polyester monofilament for hygienic performance supporting ISO 22000 (formerly HACCP)
• High open area for improved throughput and drainage
• Available recyclable versions and food‑compliant options (EC 1935/2004, FDA)

Series & mesh sizes
Ultrascreen 1000

• Mesh opening: 1000 μm
• Material: 100% polyester monofilament
• Colour: light blue (non‑food colour)
• Stabilising strips: PVC or Amtel TPE‑E
• Air permeability: 3640 L/dm²/min at Δp = 100 Pa
• Water permeability: approx. 700–2060 mm/s (depending on mesh)
• Open area: approx. 30–60% (depending on mesh)
• Food standards: EC 1935/2004, FDA (where applicable)
• Recyclable version available

Ultrascreen 2000

• Mesh opening: 2000 μm
• 100% polyester monofilament
• Colour: light blue (non‑food colour)
• Stabilising strips: PVC or Amtel TPE‑E
• Air permeability: 5080 L/dm²/min at Δp = 100 Pa
• Water permeability: approx. 700–2060 mm/s (depending on mesh)
• Open area: approx. 30–60% (depending on mesh)
• Food standards: EC 1935/2004, FDA
• Recyclable version available

Ultrascreen 3000

• Mesh opening: 3000 μm
• 100% polyester monofilament
• Colour: light blue (non‑food colour)
• Stabilising strips: PVC or Amtel TPE‑E
• Air permeability: 6000 L/dm²/min at Δp = 100 Pa
• Water permeability: approx. 700–2060 mm/s (depending on mesh)
• Open area: approx. 30–60% (depending on mesh)
• Food standards: EC 1935/2004, FDA
• Recyclable version available

Ultrascreen 4000

• Mesh opening: 4000 μm
• 100% polyester monofilament
• Colour: light blue (non‑food colour)
• Stabilising strips: PVC or Amtel TPE‑E
• Air permeability: 6540 L/dm²/min at Δp = 100 Pa
• Water permeability: approx. 700–2060 mm/s (depending on mesh)
• Open area: approx. 30–60% (depending on mesh)
• Food standards: EC 1935/2004, FDA
• Recyclable version available

Ultrascreen PRO (positive drive)
Ultrascreen PRO belts are available with a variety of tooth and sprocket styles to suit positive‑drive applications or retrofits. The positive drive design delivers improved tracking and operational benefits:

• Mesh opening options (1000, 2000, 3000 μm depending on variant)
• Superior tracking performance
• Lower assembly tension and reduced belt elongation
• Reduced energy consumption and maintenance costs
• Plug & Play installation with no run‑in time
• Easy to clean and disinfect; supports ISO 22000
• Reduced product contamination risk

Ultrascreen XMD (metal‑detectable edges)
Ultrascreen XMD edges are X‑ray and metal‑detectable to minimise the risk of foreign‑body contamination in food lines. Edges or cleats that contaminate product can be picked up by metal detectors.

Featured product (example)
Article Code | Description | Thickness | Air permeability
USBE000011 | Ultrascreen 1000 light blue FG | 1.5 mm | 3640 L/dm²/min

Technical specifications

• Materials: 100% polyester monofilament (screen mesh); stabilising strips: PVC or Amtel TPE‑E
• Mesh openings available: 1000, 2000, 3000, 4000 μm (variants and PRO/XMD options)
• Air permeability examples: 3640 / 5080 / 6000 / 6540 L/dm²/min at Δp = 100 Pa
• Water permeability: approx. 700–2060 mm/s (depending on mesh)
• Open area: approx. 30–60% (depending on mesh)
• Colour: light blue (non‑food colour) to aid visual inspection
• Food compliance: EC 1935/2004 and FDA where applicable
• Options: PRO (positive drive), XMD (metal/X‑ray detectable edges), recyclable versions
• Belt properties influenced by choice of stabilising strips and accessories; select according to application

*Values depend on mesh size.
