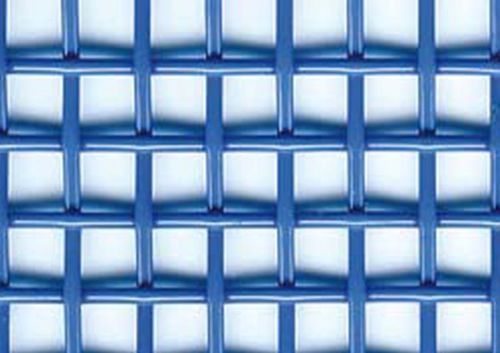

Wire mesh conveyor belt Ultrascreen 3000

polyesterPVCblue

Product overview
Ammeraal Beltech Ultrascreen conveyor belts are engineered for de-watering and drying of washed fresh-cut vegetables. Multiple mesh sizes and a large open area provide tailored permeability and high production throughput.

Applications

• De-watering and drying of washed fresh-cut vegetables
• Cooling processes and draining
• Recycling of wash water and wastewater treatment
• Filtering, sieving and squeezing operations

Benefits

• Variable mesh sizes to match product dimensions and processing needs
• Hygienic design supporting ISO 22000 requirements

Product variants and mesh sizes

• Ultrascreen 1000
  • Mesh opening: 1000 μm
  • Material: 100% polyester monofilament
  • Colour: light blue (non-food colour)
  • Stabilising strips: PVC, Amtel TPE-E
  • Air permeability: 3640 L/dm²/min at Δp = 100 Pa
  • Water permeability: 700 to 2060 mm/s* (depending on mesh size)
  • Open area: 30 to 60%* (depending on mesh size)
  • Food standards: EC1935/2004, FDA
  • Recyclable version available
• Ultrascreen 2000
  • Mesh opening: 2000 μm
  • Material: 100% polyester monofilament
  • Colour: light blue (non-food colour)
  • Stabilising strips: PVC, Amtel TPE-E
  • Air permeability: 5080 L/dm²/min at Δp = 100 Pa
  • Water permeability: 700 to 2060 mm/s* (depending on mesh size)
  • Open area: 30 to 60%* (depending on mesh size)
  • Food standards: EC1935/2004, FDA
  • Recyclable version available
• Ultrascreen 3000
  • Mesh opening: 3000 μm
  • Material: 100% polyester monofilament
  • Colour: light blue (non-food colour)
  • Stabilising strips: PVC, Amtel TPE-E
  • Air permeability: 6000 L/dm²/min at Δp = 100 Pa
  • Water permeability: 700 to 2060 mm/s* (depending on mesh size)
  • Open area: 30 to 60%* (depending on mesh size)
  • Food standards: EC1935/2004, FDA
  • Recyclable version available
• Ultrascreen 4000
  • Mesh opening: 4000 μm
  • Material: 100% polyester monofilament
  • Colour: light blue (non-food colour)
  • Stabilising strips: PVC, Amtel TPE-E
  • Air permeability: 6540 L/dm²/min at Δp = 100 Pa
  • Water permeability: 700 to 2060 mm/s* (depending on mesh size)
  • Open area: 30 to 60%* (depending on mesh size)
  • Food standards: EC1935/2004, FDA
  • Recyclable version available
• Ultrascreen PRO (positive drive)
  • Available in PRO 1000, PRO 2000, PRO 3000 mesh openings
  • Positive drive with various tooth and sprocket styles
  • Improved tracking and lower assembly tension
  • Reduced energy consumption and maintenance
  • Plug & Play installation and easy cleaning
  • Supports ISO 22000 hygiene requirements
• Ultrascreen XMD (metal-detectable edges)
  • X-ray and metal-detectable edges to reduce foreign body risk
  • Available in XMD 1000, XMD 2000, XMD 3000
  • Air permeability and other properties similar to corresponding mesh sizes

Featured product
Article Code | Description | Thickness | Air permeability
USBE000013 | Ammeraal Beltech Ultrascreen 3000 light blue FG | 1.85 mm | 6000 L/dm²/min

Notes
*Depending on mesh size and stabilising strips used

Technical specifications

• Brand: Ammeraal Beltech
• Model: Ultrascreen 3000
• Mesh opening: 3000 μm
• Material: 100% polyester monofilament
• Colour: light blue (non-food colour)
• Stabilising strips: PVC, Amtel TPE-E
• Air permeability: 6000 L/dm²/min at Δp = 100 Pa (Ultrascreen 3000 example)
• Water permeability: 700 to 2060 mm/s (depending on mesh)
• Open area: 30 to 60% (depending on mesh)
• Thickness (example USBE000013): 1.85 mm
• Food standards: EC1935/2004, FDA
• Options: XMD edges and PRO positive-drive versions; recyclable version available
