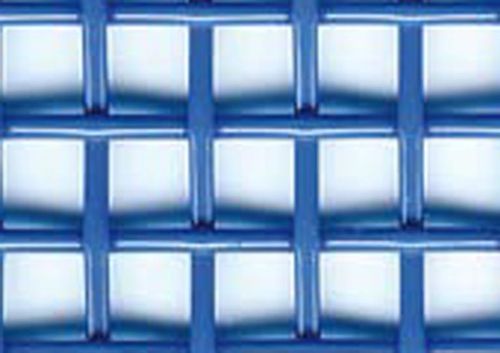

Wire mesh conveyor belt Ultrascreen 4000

in polyester meshPVCpolyester

Product overview
The Ammeraal Beltech Ultrascreen 4000 is a conveyor belt designed for de-watering and drying washed, fresh-cut vegetables and similar food products. The belt uses a 100% polyester monofilament screen with a 4000 μm mesh opening to provide high throughput and controlled liquid removal.

Applications

• De-watering and drying of fresh-cut vegetables
• Cooling processes and water recycling
• Wastewater treatment, filtering, sieving and squeezing operations

Benefits

• Mesh size tailored to product size for optimal drainage
• Hygienic design supporting food safety standards (ISO 22000 / EC 1935/2004 / FDA where applicable)
• High open area for increased production throughput

Product variants & mesh sizes
Ultrascreen 1000

• Mesh opening 1000 μm
• 100% polyester monofilament
• Light blue colour (non-food colour)
• Stabilising strips: PVC, Amtel TPE-E, EVA
• Air permeability example: 3640 L/dm²/min at Δp = 100 Pa
• Water permeability: 700–2060 mm/s (depending on mesh)
• Open area: 30–60% (depending on mesh)
• Recyclable version available

Ultrascreen 2000

• Mesh opening 2000 μm
• 100% polyester monofilament
• Light blue colour
• Stabilising strips: PVC, Amtel TPE-E, EVA
• Air permeability example: 5080 L/dm²/min at Δp = 100 Pa
• Water permeability: 700–2060 mm/s*
• Open area: 30–60%*
• Recyclable version available

Ultrascreen 3000

• Mesh opening 3000 μm
• 100% polyester monofilament
• Light blue colour
• Stabilising strips: PVC, Amtel TPE-E, EVA
• Air permeability example: 6000 L/dm²/min at Δp = 100 Pa
• Water permeability: 700–2060 mm/s*
• Open area: 30–60%*
• Recyclable version available

Ultrascreen 4000

• Mesh opening 4000 μm
• 100% polyester monofilament
• Light blue colour
• Stabilising strips: PVC, Amtel TPE-E, EVA
• Air permeability: 6540 L/dm²/min at Δp = 100 Pa
• Water permeability: 700–2060 mm/s*
• Open area: 30–60%*
• Recyclable version available

Ultrascreen PRO (positive drive variants)

• Available with a variety of teeth and sprocket styles for positive drive systems
• Improved tracking and reduced belt elongation
• Lower energy consumption and reduced maintenance
• Plug & Play installation; easy to clean and disinfect

Ultrascreen XMD (metal-detectable edges)
Edges and cleats are X-ray and metal-detectable to reduce foreign-body risk in food streams, enabling detection of contaminated segments by metal-detection systems.

• Metal/X-ray detectable edges available
• Same base material and performance characteristics as standard Ultrascreen variants

Featured product
Article code: USBE000016 | Description: Ultrascreen 4000 light blue FG | Thickness: 2 mm | Air permeability: 6540 L/dm²/min

Technical specifications

• Mesh material: 100% polyester monofilament
• Available mesh openings: 1000, 2000, 3000, 4000 μm
• Standard colour: light blue (non-food colour)
• Stabilising strips: PVC, Amtel TPE-E, EVA (application dependent)
• Typical air permeability range: examples given per mesh at Δp = 100 Pa
• Water permeability: typically 700–2060 mm/s (depends on mesh)
• Open area: typically 30–60% (depends on mesh)
• Food compliance: EC 1935/2004, FDA (variant dependent)
• Recyclable versions available; final belt properties depend on stabilising strips and accessories

Notes
*Values vary depending on mesh size and belt configuration.
