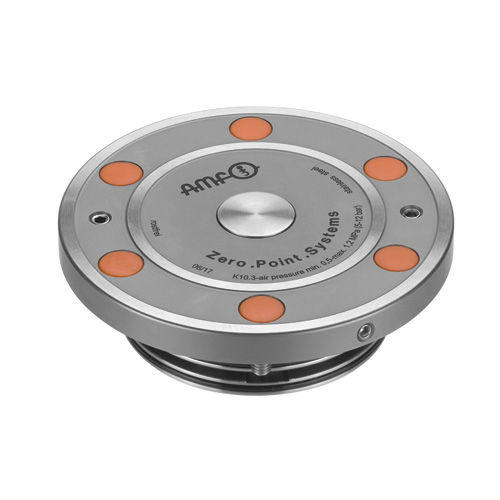

Round zero-point clamping system 6111LA-10-05

Installation clamping module with central lock for automation solutions Pneumatic opening. Pneumatic blow-out. Opening operating pressure: min. 5 bar - max. 12 bar. Cover and piston hardened. Repetition accuracy < 0.005 mm. With locking control (pneum.), opening control (pneum.) and support control (pneum.). Zero-point clamping system for automation solutions for set-up-time-optimised clamping during cutting and non-cutting machining. Note: The central lock actuated by spring force for protection of the clamping module. The pull-stud is fastened and installed with a DIN ISO countersunk head screw M8. Locking control: Dynamic pressure with locked clamping module, flow-through with opened clamping module. Opening control: Dynamic pressure with opened clamping module, flow-through with locked clamping module. Support control via the blow-out function: Dynamic pressure with supported interchangeable pallet. The clamping module is opened pneumatically and locked mechanically by spring force. Subsequent uncoupling of the pressure line is possible at any time (clamping module is clamped at normal pressure). The clamping module has five connections: 1 = pneum. opening 3 = pneum. blow-out 4 = pneum. opening control inlet 5 = vent 8 = pneum. locking control, inlet * Please observe the installation instructions. On request: - Installation diagrams
