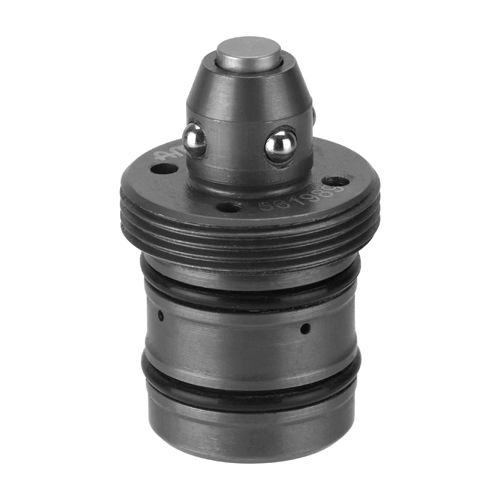

Screw-in zero-point clamping system 6215P-01

pneumatic

Pneumatic opening. Opening operating pressure: min. 5 bar - max. 12 bar. Housing and piston hardened. Repetition accuracy < 0.1 mm. Pneumatic zero-point clamping system for set-up-time-optimised clamping during cutting and non-cutting machining in all areas, also in the food, pharmaceutical and chemical industry. Ideally suited for applications in the transfer automation range, since no interference contour is present underneath. Note: The zero-point clamping system is opened (1) pneumatically and locked mechanically by spring force. Subsequent uncoupling of the pressure line is possible at any time (zero-point clamping system is clamped at normal pressure). The base plate serves as the contact surface, into which the zero-point clamping system is screwed. * Please observe the installation instructions. On request: - Installation drawings
