Speed converter UTS-404AK

RS232universalindustrial

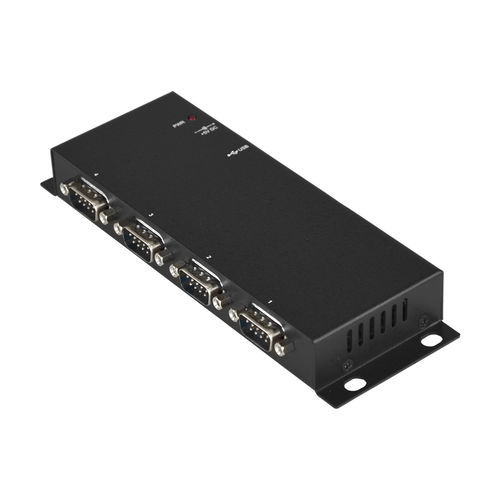

Product Overview The UTS-404AK is a 4-port RS232 to USB serial adapter designed for PCs, thin clients, or servers to provide instant COM port expansion via the Universal Serial Bus (USB). It supports screw lock features for the upstream (USB type B) connector with screw lock USB cables, preventing accidental disconnection. The UTS-404AK offers scalability to quickly adapt to new USB technologies. Multiple modules can be added to a single USB interface, allowing you to add RS232 connectivity as needed. The complete product line offers many choices to help you expand and grow your network according to your requirements. With the USB Plug-and-Play feature, simply plug in, follow the Install Wizard instructions, and you are done. There is no need to deal with card slots, I/O addresses, IRQ jumpers, DMA, or other configurations when connecting devices. The system will recognize the device and install the drivers automatically. The UTS-404AK is an ideal solution for expanding applications. Features - USB Screw Lock Mechanism for Enhanced Reliability - Provides 4 RS232 Serial Ports over USB Port - Provides 4 DSUB-9 Connectors - Rigid Metal Case for Critical Applications - Baud Rate up to 921.6Kbps - Supports 7, 8 Data Bits - Odd, Even, Mark, Space, or None parity mode - Supports 1 or 2 Stop Bits - Supports USB Bus Power - DC Jack for Optional DC 5V Power Input Package Content - UTS-404AK - CD Drivers/Utilities - User's Manual - USB Cable Optional Accessories - CB-USBA-USBB-2M-K: USB2.0 Cable, A to B with Locking Feature, 2M, Black - CB-USBA-USBB-5M-K: USB2.0 Cable, A to B with Locking Feature, 5M, Black - PA-UTS-K-US: Power Adapter with Locking Feature for UTS Products. 5V 2A, US Plug Certifications: Certification 1, Certification 2, Certification 11, Certification 9 Downloads - Datasheet - Quick Installation Guide Technical Specifications / Features - Model: UTS-404AK - Type: Industrial 4-Port RS-232 to USB 2.0 High Speed Converter with Locking Feature - Number of Ports: 4 RS232 Serial Ports - Connector: 4 x DSUB-9 - Baud Rate: Up to 921.6Kbps - Data Bits: 7, 8 - Parity: Odd, Even, Mark, Space, None - Stop Bits: 1, 2 - Power: USB Bus Power, Optional DC 5V Input - Case: Rigid Metal - Plug-and-Play: Yes - Certifications: Multiple (see above)
