Speed converter UTS-402CK

RS422/RS485RS-232universal

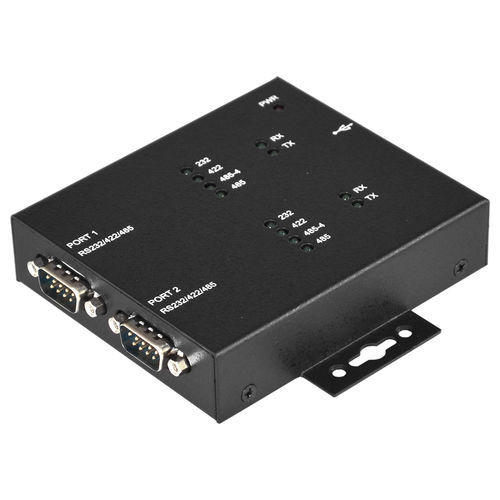

Product Overview The UTS-402CK is a 2 Port RS-232/422/485 Combo to USB 2.0 serial adapter designed for PCs, thin clients, or servers to provide instant COM port expansion via the Universal Serial Bus (USB). It supports a screw lock feature for the upstream (USB type B) connector with screw lock USB cables, preventing accidental disconnection. The UTS-402CK offers scalability to quickly adapt to new USB technologies. Multiple modules can be added to a single USB interface, allowing you to add RS-232 connectivity as needed. With USB Plug-and-Play, simply plug in, follow the Install Wizard instructions, and you're done. No need to deal with Card Slots, I/O address, IRQ jumpers, DMA, or other configurations. The system will recognize the device and install drivers automatically. The UTS-402CK is an ideal solution for expanding applications. Features - 2 RS-232/422/485 Serial Ports over USB2.0 Port - USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible - 4 Modes: RS-232, RS-422, 4-Wire and 2-Wire RS-485 - Provides 2 DSUB-9 Connectors with TX/RX LEDs - USB Screw Lock Mechanism Enhances Reliability - Rigid Metal Case for Critical Applications - Baud Rate up to 921.6Kbps - Supports 7, 8 Data Bits - Odd, Even, Mark, Space, or None parity mode - Supports 1 or 2 Stop Bits - Supports USB Bus Power - Supports Optional DIN RAIL Mounting Kit Package Content - UTS-402CK - CD Drivers/Utilities - User's Manual - USB Cable Optional Accessories - CB-USB3.0-A-B-2M-K: USB3.0 Cable, A to B with Locking Feature, 2M, Black - CB-USBA-USBB-5M-K: USB2.0 Cable, A to B with Locking Feature, 5M, Black - PA-UTS-K-US: Power Adapter with Locking Feature for UTS Products. 5V 2A, US Plug Certifications: (Icons shown on page, details not specified) Downloads: - Datasheet - Hardware Manual
