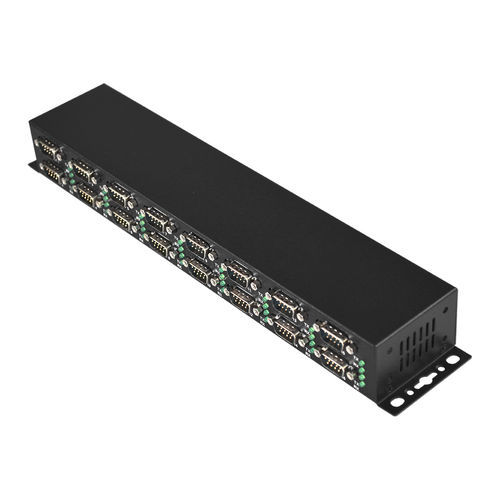

Speed converter UTS-416AK

powerRS-232universal

Product Overview The UTS-416AK is a 16-port RS-232 to USB 2.0 serial adapter designed for PC, thin client, or server to provide instant COM port expansion via the Universal Serial Bus (USB). It supports screw lock features for the upstream (USB type B) connector with screw lock USB cables. This feature prevents accidental disconnection of USB cables. The UTS-416AK also provides scalability to quickly adapt to new USB technology. Multiple modules can be added to a single USB interface, allowing you to add RS-232 connectivity as needed. Moreover, the UTS-416AK also has Redundant Power Inputs, allowing users to take advantage of both the DC jack and Terminal Block inputs at the same time. The complete product line offers many choices to help you expand and make your network grow with your requirements. With the USB Plug-and-Play feature, simply plug in and follow the instructions of the Install Wizard. You don’t have to deal with Card Slots, I/O address, IRQ jumpers, DMA, and other settings when connecting devices. The system will recognize the device and install the drivers automatically. The UTS-416AK is an ideal solution for your expanding applications. Features - Provides 16 RS-232 Serial Ports over USB 2.0 Port - USB 2.0 High Speed (480Mbits/Second) and Full Speed (12Mbits/Second) compatible - Redundant Power Inputs with 12V DC Jack and Terminal Block - Provides 16 DSUB-9 Connectors with TX/RX LEDs - USB Screw Lock Mechanism Enhances the Reliability - Rigid Metal Case for Critical Applications - Supports Wide Range +7~24V DC Power over the 2-pin Terminal Block - Baud Rate up to 921.6Kbps - Supports 7,8 Data Bits and 1, or 2 Stop Bits - Odd, Even, Mark, Space, or None parity mode - Supports Wall Mount Bracket, Optional DIN RAIL and 19-inch Rack Mounting Brackets - Optional Settings to Provide +12VDC power over pin#9 of the DB9 RS232 Connectors Package Content - UTS-416AK - USB Cable - User's Manual - CD Drivers/Utilities Optional Accessories - CB-USBA-USBB-2M-K: USB2.0 Cable, A to B with Locking Feature, 2M, Black - CB-USBA-USBB-5M-K: USB2.0 Cable, A to B with Locking Feature, 5M, Black Certifications - Various certifications (see product page for icons) Downloads - Datasheet - Quick Installation Guide Technical Specifications / Features - 16-port RS-232 to USB 2.0 serial adapter - USB 2.0 High Speed (480Mbits/sec) and Full Speed (12Mbits/sec) compatible - Redundant Power Inputs: 12V DC Jack and Terminal Block - 16 DSUB-9 connectors with TX/RX LEDs - USB screw lock mechanism - Rigid metal case - Wide range +7~24V DC power via 2-pin terminal block - Baud rate up to 921.6Kbps - Supports 7,8 data bits; 1 or 2 stop bits - Parity: Odd, Even, Mark, Space, None - Wall mount bracket, optional DIN RAIL and 19-inch rack mounting brackets - Optional +12VDC power over pin#9 of DB9 RS232 connectors
