Speed converter UTS-408AK

powerRS232universal

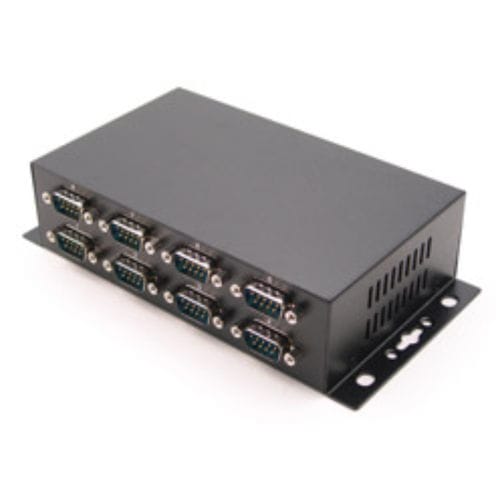

Product Overview The UTS-408AK is an 8-port RS232 to USB serial adapter designed for PCs, thin clients, or servers to provide instant COM port expansion via the Universal Serial Bus (USB). It features a screw lock mechanism for the upstream (USB type B) connector with compatible screw lock USB cables, preventing accidental disconnection. The UTS-408AK offers scalability to quickly adapt to new USB technologies. Multiple modules can be added to a single USB interface, allowing RS232 connectivity expansion as needed. The complete product line offers many choices to help expand and grow your network according to your requirements. With USB Plug-and-Play, simply plug in, follow the Install Wizard instructions, and you are done. No need to deal with card slots, I/O addresses, IRQ jumpers, DMA, or other configurations. The system will recognize the device and install drivers automatically. The UTS-408AK is an ideal solution for expanding applications. Features - USB Screw Lock Mechanism for Enhanced Reliability - Provides 8 RS232 Serial Ports over USB Port - Provides 8 DSUB-9 Connectors - Rigid Metal Case for Critical Applications - Baud Rate up to 921.6Kbps - Supports 7, 8 Data Bits - Odd, Even, Mark, Space, or None parity mode - Supports 1 or 2 Stop Bits - Supports USB Bus Power - DC Jack for Optional DC 5V Power Input - Supports Windows 98, Me, XP, CE, 2000, 2003, Vista, Windows 7, and Linux Package Content - UTS-408AK - CD Drivers/Utilities - User's Manual - USB Cable Optional Accessories - CB-USBA-USBB-2M-K: USB2.0 Cable, A to B with Locking Feature, 2M, Black - CB-USBA-USBB-5M-K: USB2.0 Cable, A to B with Locking Feature, 5M, Black - PA-UTS-K-US: Power Adapter with Locking Feature for UTS Products. 5V 2A, US Plug Technical Specifications / Key Features - Model: UTS-408AK - Type: Industrial 8-Port RS-232 to USB 2.0 High Speed Converter - Locking Feature: Yes (USB Screw Lock Mechanism) - Number of Ports: 8 RS232 Serial Ports (DSUB-9 connectors) - Baud Rate: Up to 921.6Kbps - Data Bits: 7, 8 - Parity: Odd, Even, Mark, Space, None - Stop Bits: 1, 2 - Power: USB Bus Power, Optional DC 5V Input - Supported OS: Windows 98/Me/XP/CE/2000/2003/Vista/7, Linux - Case: Rigid Metal
