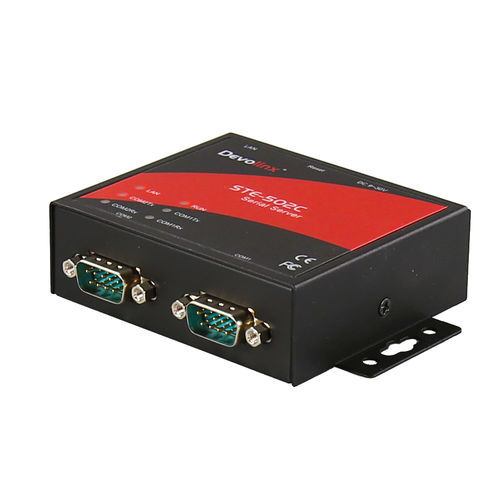

Serial device server STE-502C

EthernetRS-422RS-232

Product Overview The STE-502C is a dual port gateway between Ethernet (TCP/IP) and Serial signal communications. It allows almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, the STE-502C offers full-duplex, bi-directional data transmission transparent between serial port and Ethernet network. Capable of using either RS232, RS422 or RS485 serial communication standards, the STE-502C is ideal for upgrading industrial serial devices onto an Ethernet network. Features - Rugged Metal Case with DIN-Rail / Wall-Mount - 15 KV ESD Protection for Serial Signals - 10/100Mbps Fast Ethernet Full Duplex Auto Negotiation - Supports Multiple Link Mode with TCP Server/Client, UDP, and Virtual COM Mode - Monitor, Manage, and Control Industrial Field Devices Remotely - Configurable via Built-in Web Server, Serial Console, or Telnet - Windows Based Utility for IP Configuration - Upgradeable Firmware from Remote-PC via Ethernet Package Content - STE-502C - CD Manual/Software - Quick Start Guide Optional Accessories - AD-DB9F-TB5P38: DB9 Female to 5-pin 3.8mm Terminal Block RS422/485 Adapter for STE- & STW- series - GC-F09F09-N: Mini Gender Changer DB9 F/F Null Modem - GC-F09F09-S: Mini Gender Changer DB9 F/F Straight - GC-F09M09-N: Mini Gender Changer DB9 F/M Null Modem - PA-STE502-US: Power Adapter For STE-502C w/Lock (US Plug) Technical Specifications - Technology - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet - Processing Type: Store and Forward - Protocol: TCP/IP, UDP, HTTP, SNMP, ARP, Telnet, ICMP, BOOTP, DHCP - Flow Control: Xon/Xoff, RTC/CTS - Data Bits: 7 or 8 - Stop Bits: 1 or 2 - Parity: None, Even, Odd, Mark, Space - Software - Configuration: Web (HTML), Telnet, Serial Console, Configuration Utility - OS Support: Windows & Linux - Utility Software: Yes - Virtual COM Mode: Yes - Performance - Transfer Rate: 1200 ~ 230400 bps (230 Kbps) - Ethernet Interface - Ethernet Port Count: 1 port - 10/100 BASE-T(X): 1 × 10/100 BASE-T(X) - Serial Interface - Serial Port Count: 2 ports - Serial Interface: RS-232/422/485 - Other Interface - LED Indicator: LAN, RUN, and COM - Mechanical Characteristics - Housing: Metal - Mounting: DIN-Rail mount, Panel mount - Dimensions (W × H × D): 85 × 75 × 28 mm (3.35 × 2.95 × 1.10 inches) - Weight: 0.44 lb (0.2 kg) - Power Requirements - Power Connection: DC Jack or 3-Pin terminal block - Input Voltage: 5V (DC Jack), 9V–30V DC (3-Pin terminal block) - System Power Consumption: 3 Watts - ESD: 15KV - Environmental Limits - Operating Temperature: 0° to 60° C (32° to 140° F) - Storage Temperature: 0° to 60° C (32° to 140° F) - Ambient Relative Humidity: 20% to 90% non-condensing - Regulatory Approvals - Certifications: FCC, CE - Green: RoHS Compliant - Warranty: 5 years
