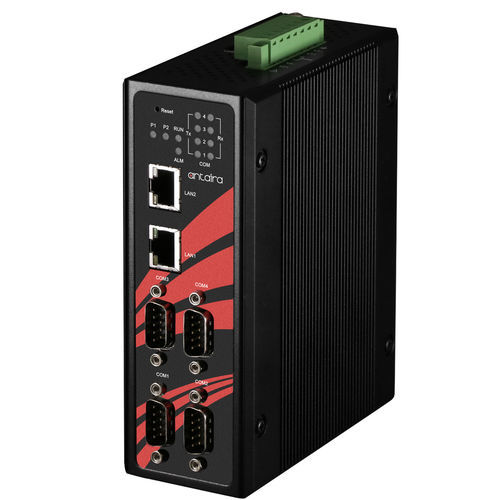

RS-485 device server STE-6104C-T-V2

RS-232RS-422serial

Antaira Technologies’ STE-6104C-T-V2 is a 4-port industrial gateway between Ethernet (TCP/IP) and serial communications. It allows almost any serial device RS232/422/485 to be connected to a new or existing Ethernet network. The STE-6104C-T-V2 supports server management options such as web based, Telnet, Serial console and Windows Utility. This industrial serial device has an extended operation temperature from -40°C to 85°C and can be mounted with DIN-Rail (included) or wall mount (sold separately). With its high-speed data rates of up to 921kbps, the STE-6104C-T-V2 is an ideal solution for expanding or upgrading serial RS232, RS422, or RS485 devices onto an Ethernet network. Features - Dual 10/100Mbps Fast Ethernet for Redundancy - 4-Port RS232/422/485, Baud Rate up to 921 Kbps - 15KV ESD Protection for Serial Signals - Rigid IP30 Metal Housing - RAW TCP Server/TCP Client/UDP/Virtual COM/Tunneling Modes - Built-in Web Server/Serial Console/Telnet/Windows-based Utility - Monitor, Manage, and Control Industrial Field Devices Remotely - DIN-Rail and Wall Mount Support - Extended Operating Temperature: -40°C to 85°C - 5-Year Warranty Package Content - Product CD - Quick Installation Guide - STE-6104C-T-V2 Optional Accessories - GC-F09F09-N: Mini Gender Changer DB9 F/F Null Modem - MDR-10-24: 10 Watt Series / 24 VDC / 0.42 Amp Industrial Slim Single Output DIN Rail Power Supply - DIN-RAIL-KIT: DIN-Rail Kit Technical Specifications - IEEE Standards: IEEE 802.3 10BaseT Ethernet, IEEE 802.3u 100BaseTX Fast Ethernet - Processing Type: Store and Forward - Protocol: TCP/IP, UDP, HTTP, SNMP, ARP, Telnet, ICMP, BOOTP, DHCP - Flow Control: None, Xon/Xoff, RTS/CTS - Data Bits: 7, 8 - Stop Bits: 1, 2 - Parity: Even, Odd, Mark, Space - Baud Rate: Up to 921 Kbps - Configuration: Serial Manager, Web UI - OS Support: Windows & Linux - Utility Software: Yes - Virtual COM Mode: Yes - Transfer Rate: 300bps ~ 921.6kbps - Ethernet Port Count: 2 ports - 10/100 BASE-T(X): 2 × 10/100 BASE-T(X) - USB: Yes - Serial Port Count: 4 ports - Serial Interface: RS-232/422/485 - LED Indicator: P1, P2, RUN, ALM, COM, LAN - Housing: Metal IP30 Rated - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 55 x 145 x 113 mm - Weight: 2.5lbs - Power Connection: 7-Pin removal terminal block - Input Voltage: 12V–48V DC - Power Redundancy: Yes - Relay Output: Yes - System Power Consumption: Max. 8W - Overload Current Protection: Present - Reverse Polarity Protection: Present - ESD: 15KV - Operating Temperature: -40° to 85° C (-40° to 185° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE - UL 61010-1 / UL 61010-2-201: UL61010-2-201/EN62368-1 - EMS: EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 (PFMF) Level 3, EN 61000-4-11 (DIP) - Stability Testing: Shock: IEC60068-2-27, Free Fall: IEC60068-2-32 (ISTA Test Procedure 2A), Vibration: IEC60068-2-64 - Green: RoHS Compliant - Warranty: 5 years
