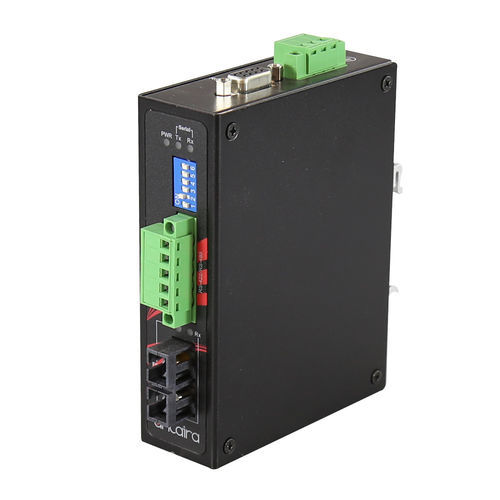

Protocol converter STF-401C-CM02-T

mediaRS422/RS485serial

Product Overview The STF-401C series Compact Industrial Serial-to-Fiber Media Converter Series provides a solution to extend any RS-232 or RS-422/485 serial device data transmission distance with 100Fx Fiber (SC or ST connector) options via Multi-Mode in 2Km or Single-Mode in 30Km. It features a Din-Rail Type design to give users an easy installation and maintenance purpose in any harsh industrial environments. A perfect solution for any single “Point-to-Point” applications with: - Industrial manufacturing in Factory Automation; - Remote sensing and signaling/metering in ITS; - EMI resistant for IEDs data transmission in Substation Automation; - Industrial Control in Process Control Automation, such as WWTP and Oil/Gas/Mining Features - Fan-less and Din-Rail design for Harsh Industrial Environment - Built in 1Port RS-232(DB9) or RS-422/485(Terminal Block) Serial Port - Supports SC or ST Multi-mode 2Km, Single-mode 30Km - Dip Switch to Change RS-485 Data Signals Pull High/Low Resistor - Supports Input Voltage 9 ~ 48VDC - Supports Reverse Polarity Protection - Wide Range Operating Temperature Supports: -40 to 70°C - Applicable with Point-to-Point, Half Duplex Single Ring Topology Serial Fiber Daisy Chain Network application - 5-Year Warranty Package Content - Quick Installation Guide Optional Accessories - MDR-10-24: 10 Watt Series / 24 VDC / 0.42 Amp Industrial Slim Single Output DIN Rail Power Supply Technical Specifications - Baud Rate: 300bps ~ 921kbps - Serial Signals: - RS-232 - TxD, RxD, GND ( DCD, DTR, DSR internal short ; CTS, RTS internal short ) - RS-422-4w - TxD+, TxD-, RxD+, RxD-, GND - RS-485-2w - Data+, Data-,GND - Pull High/Low: Dip Switch adjustment - Transfer Rate: 300bps ~ 921kbps - Fiber Port Count: 1 port - 100 BASE-FX Fiber: 1 port (SC connector) - Wavelength: 1310nm - Transmission Distance: 2 km - Tx Power: -14 ~ -23.5 dBm @ 50/125μm / -14~-20 dBm @ 62.5/125μm - Rx Sensitivity: -31 dBm - Serial Port Count: 1 port - Serial Interface: RS-232/422/485 - DIP Switch: 6 PIN Serial Interface / Pull High(Low) Switch - LED Indicator: PWR, Serial TX/RX, Fiber TX/RX - Housing: Metal, IP50 Protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 34.4 × 91.2 × 120mm (1.35 × 3.59 × 4.72 inches) - Weight: 1.54 lbs (0.7 kg) - Power Connection: 3-pin removal terminal block - Input Voltage: 9V–48V DC - System Power Consumption: 2.52 Watts- @0.28A max, 9 VDC - Reverse Polarity Protection: Present - ESD: 15KV - Operating Temperature: -40° to 70° C (-40° to 158° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE - EMI: FCC Part15, CISPR (EN55022/24) Class A - EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 - Stability Testing: Shock: MIL-STD-810F Method 516.5; Free Fall: MIL-STD-810F Method 516.5; Vibration: MIL-STD-810F Method 514.5 C-1 & C-2 - MTBF: 216,388 hours - Green: RoHS Compliant - Warranty: 5 years
