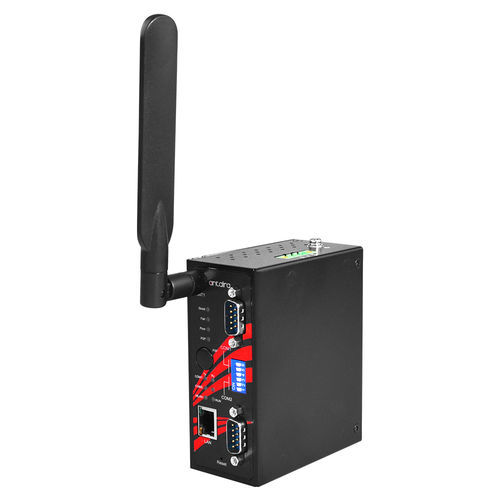

LAN device server STW-612C

WLANRS422/RS485wireless

Product OverviewThe Antaira STW-612C is an industrial wireless serial device server with IEEE 802.11b/g/n in the 2.4GHz band that provides connectivity to clients and serial devices, creating a complete solution for wireless networking.It features an IP30-rated, compact, rugged aluminum case design with a wide operating temperature range (-10° to 60°C) and high EMC protection to meet industrial application requirements.Antaira’s STW-612C includes advanced features such as “bridge” mode, allowing any serial and Ethernet device to link with a wireless network for “3-way communication.” It also offers hassle-free “Wi-Fi direct” technology for easy point-to-point setup via a push-button method, requiring no software configuration.Features3-Way Communication with Any Serial or Ethernet Device to Wireless NetworkSupports Wi-Fi Direct Technology (Point-to-Point) for Easy SetupIEEE 802.11b/g/n Compliant with WPA, WPA2, 802.1x Security2 x RS232/422/485 Software Selectable Serial PortsSupports 1-Port 10/100Tx RJ45 Ethernet PortSerial Data Throughput Rate: 110~921.6KbpsSupports Virtual COM, TCP/UDP Server/Client, and Tunneling ModeConfiguration via Built-in Web Console and Windows UtilitiesCompact IP30 Rugged Aluminum Case DesignPower Input Design: 9~48VDCReverse Polarity ProtectionDIN-Rail and Wall Mount (optional) SupportWide Temperature Range Support: -10° to 60°C5-Year WarrantyPackage ContentSTW-612CAntenna 2dBiProduct CDQIG (Quick Installation Guide)Optional AccessoriesMDR-10-24: 10 Watt Series / 24 VDC / 0.42 Amp Industrial Slim Single Output DIN Rail Power SupplyPA-STX-EU: Power Adapter for STE(W)-501/601 & LNX/IMC (EU Plug). Input: AC 100-240V 50/60Hz 0.4A; Output: DC 12V 1.25APA-STX-US: Power Adapter for STE(W)-501/601 & LNX/IMC (US Plug). Input: AC 100-240V 50/60Hz 0.4A; Output: DC 12V 1.25ATechnical SpecificationsIEEE Standards: IEEE 802.11 b/g/n, IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TXProcessing Type: Store and ForwardProtocols: IPv4, ICMP, TCP, UDP, DHCP Client, SNMP, SMTP, HTTP, DNS, NTP, RADIUS, RFC2217, WPS, SyslogFlow Control: None, Xon/Xoff, RTS/CTSWLAN Operation Mode: Wireless Client / AP ClientWiFi Encryption: WEP, WPA, WPA2, TKIP, AESModulation Type: DSSS with DBPSK, DQPSK, CCK; OFDM with BPSK, QPSK, 16QAM, 64QAMTopologies: Infrastructure, Ad-HocTransmission Rate: IEEE 802.11b: 1,2,5.5,11Mbps; IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps; IEEE 802.11n: 20MHz bandwidth: 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.); 40MHz bandwidth: 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)Data Bits: 5,6,7,8Stop Bits: 1,2Parity: None, Even, Odd, Mark, SpaceBaud Rate: 110 ~ 921.6 KbpsSerial Signals: RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND; RS-422/485-4W: TxD+, TxD-, RxD+, RxD-, GND; RS-485-2W: Data+, Data-, GNDConfiguration: Serial Manager, Web UIWireless Security: WEP, WPA, WPA2, TKIP, AESOperation Mode: AP Client/Wireless ClientOS Support: Windows & LinuxUtility Software: YesVirtual COM Mode: YesTransfer Rate: 110 ~ 921.6 KbpsEthernet Port Count: 1 port10/100 BASE-T(X): 1 × 10/100 BASE-T(X)WLAN Interface: IEEE 802.11 b/g/n (2.4GHz)Number of Radios: 1Antenna: One External SMA Antenna: 3dBi for 2.4GHz (SISO)Tx Power: IEEE 802.11b +14dBm; IEEE 802.11g +17dBm @ 6,9,12,18,24Mbps, +17dBm @ 36Mbps, +16dBm @ 48Mbps, +16dBm @ 54Mbps; IEEE 802.11n – 2.4GHz/HT20: +16dBm @ MCS 0-6, +15dBm @ MCS 7; IEEE 802.11n – 2.4GHz/HT40: +15dBm @ MCS 0-6, +14dBm @ MCS 7Serial Port Count: 2 portsSerial Interface: RS-232/422/485DIP Switch: 6 PIN for 2 COM Pull High/Pull LowLED Indicator: WLAN, COM, LAN, RUN & P2PHousing: Metal, IP30 protectionMounting: DIN-Rail mount, Wall mount (Optional)Dimensions (W × H × D): 47mm × 110mm × 90mmWeight: 1.10 lb (0.5 kg)Power Connection: 3-pin removal terminal blockInput Voltage: 9V–48V DCSystem Power Consumption: Approximately 5.85 WattsReverse Polarity Protection: PresentIsolation Protection: 1.5KVESD: 15KVOperating Temperature: -10° to 60° C (14° to 140° F)Storage Temperature: -40° to 85° C (-40° to 185° F)Ambient Relative Humidity: 5% to 95% non-condensingCertifications: FCC, CEEMI: CE EN 301489-1 V1.8.1, EN301489-17, EMC V2.1.1 (Class A), FCC 15B (Class A)EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11Stability Testing: Shock: IEC60068-2-27, Free Fall: IEC60068-2-32, Vibration: IEC60068-2-6Safety: EN60950-1Green: RoHS CompliantWarranty: 5 years
