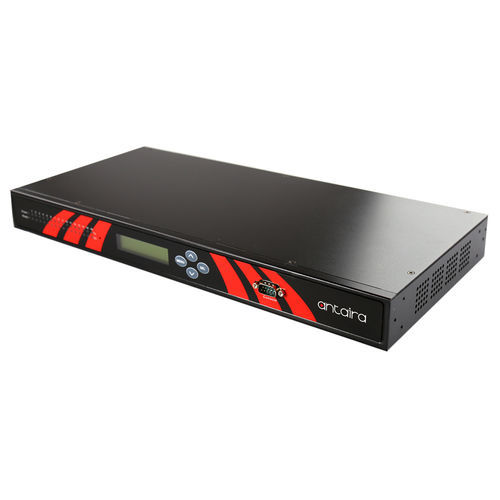

Ethernet device server STE-708Bi

LANRS-422RS485

Product OverviewThe STE-708 series is an 8-port industrial 1U 19” rackmount designed as an RS232 or RS422/485 serial device server. Each unit is built with dual LAN ports which allow users to set up a ring topology network for dual data redundancy applications. It also supports high EMC protection and 2.5KV optical isolation for RS422/485 models. It is designed with wide operating temperature support (-20° to 70°C) to fulfill any industrial environmental application.Many industrial applications still require legacy serial equipment such as PLCs, barcode scanners, display signs, security access controllers, CNC controllers, and many more that are not yet Ethernet ready for a TCP/IP network. Antaira’s STE-708 is designed to transmit data bi-directionally between one or more serial devices to a TCP/IP network. Plus, the advanced network and data redundancy features allow users to execute excellent remote management applications.Features1U 19” Rack-Mount Metal Housing DesignIndustrial High EMC Protection8 Port RS422/485 Serial PortsBuilt-in Dual 10/100Mbps Ethernet for Applications: Daisy Chain Ethernet / Network Redundancy / Data Redundancy Network2.5KV Isolation ProtectionSerial Data Throughput Rate: 50~921.6KbpsSupports Virtual COM, TCP/UDP Server/Client, and Tunneling ModeConfiguration via Built-in Web Console, and Windows UtilitiesPower Input: 100~240VACWide Operating Temperature Range Support: -20° to 70° C (-4°F ~ 158°F)5-Year WarrantyPackage Content1 × STE-708Bi1 × AC Power Cord - US Plug1 × RJ45 to DB9 Male serial cable4 × Foot Rubbers for the bottom of the device1 × 19" Rackmounting Kit1 × Hardware Installation Guide1 × Product CDOptional AccessoriesCB-RJ45-DB9F-90: RJ45 to DB9 Female Serial Cable - 90cmCB-RJ45-DB9M-90: RJ45 to DB9 Male Serial Cable - 90cmTechnical SpecificationsIEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast EthernetProcessing Type: Store and ForwardProtocol: IPv4, ICMP, TCP, UDP, DHCP Client, SNMP, HTTP, Telnet, RFC2217, NTP, DNS, SMTP, SyslogBaud Rate: 50~921,600 bpsConfiguration: Web Console, Serial Manager, Serial Console, TelnetEthernet Redundancy: YesOS Support: Windows & LinuxUtility Software: YesVirtual COM Mode: YesTransfer Rate: 50~921,600 bpsEthernet Port Count: 2 ports10/100 BASE-T(X): 2 × 10/100 BASE-T(X)Serial Port Count: 8 portsSerial Interface: RS-422/485LED Indicator: Power, Ready, COM & LANHousing: Metal, IP30 protectionMounting: 1U 19” RackmountDimensions (W × H × D): 436 × 43.5 × 200 mmWeight: 6.61 lbs (3 kg)Power Connection: AC Inlet or DC TB3Input Voltage: 100V–240V AC (AC models), 24–48V DC (DC models)Relay Output: 24V DC, 1A resistiveSystem Power Consumption: 21W (AC models), 13W (DC models)Reverse Polarity Protection: PresentIsolation Protection: 2.5KVESD: 15KVOperating Temperature: -20° to 70° C (-4° to 158° F)Storage Temperature: -40° to 85° C (-40° to 185° F)Ambient Relative Humidity: 5% to 95% non-condensingCertifications: FCC, CEEMI: EN 55022: 2010, EN 55024: 2010, FCC Part 15B, Class AEMS: IEC-610004-2 (ESD) Level 4, IEC-610004-3 (RS) Level 3, IEC-610004-4 (EFT) up to Level 4, IEC-610004-5 (Surge) up to Level 4, IEC-610004-6 (CS) Level 3, IEC-610004-8 (PFMF) Level 3, IEC-610004-11Stability Testing: Shock: IEC60068-2-27, Free Fall: IEC60068-2-32, Vibration: IEC60068-2-6Green: RoHS CompliantWarranty: 5 years
