RS-422 device server STE-604C-P

LANserialRS-232

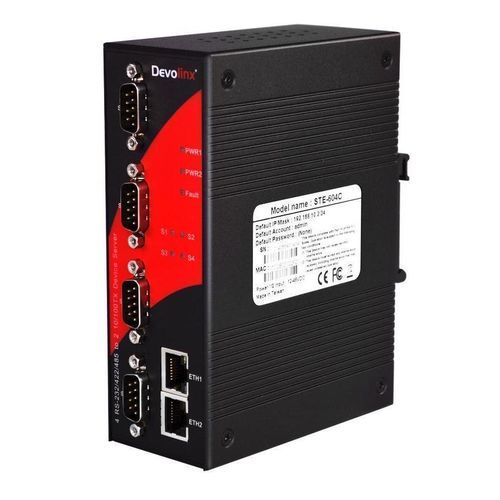

Product Overview The STE-604C-P is an innovative 4-port RS232/422/485 to 2-port LAN redundant device server. To assure the agility and security of critical data, the STE-604C-P offers many powerful features for hardware and software redundant functions. When the connection between the master-link and LAN fails, the STE-604C-P can automatically switch to another LAN port within 10ms and still guarantee a non-stop connection. The STE-604C-P also supports switch mode, allowing users to Daisy Chain to reduce the usage of Ethernet switch ports. It can simultaneously transfer data into 5 host PCs, ensuring all critical data is saved in different host PCs to avoid Ethernet break or host PC failure. The device provides dual redundant power inputs on the DC power jack and terminal block, and a NAT pass-through function for management inside or outside the NAT router. It is easy for different IP domain users to use the STE-604C-P. The STE-604C-P is one of the best communication redundant solutions for serial device applications. Additionally, it supports P.O.E. PD on ETH2, fully compliant with IEEE802.3af standards. Features - Fully Compliant with IEEE 802.3af (P.O.E., Power Device) - Redundant Dual Ethernet Ports: Recovery Time < 10ms - Switch Mode Support: Daisy Chain to Reduce Usage of Switch Ports - NAT-Pass Through: Users Can Manage Through NAT Router - Redundant Power Inputs: 12 ~ 48VDC on Terminal Block - Redundant Multiple Host Devices - 5 Simultaneous in Virtual COM, TCP Server, TCP Client Mode, UDP - Secured Management by HTTPS and SSH - Event Warning by Syslog, Email, SNMP Trap, and Beeper - 5-Year Warranty Package Content - STE-604C-P - CD Manual/Software - Quick Start Guide - Wallmount Kit - DIN-Rail Kit - Terminal Block Optional Accessories - AD-DB9F-TB5P35: DB9 Female to 5-pin 3.5mm Terminal Block RS422/485 Adapter for MSC- series - GC-F09F09-N: Mini Gender Changer DB9 F/F Null Modem - GC-F09F09-S: Mini Gender Changer DB9 F/F Straight - GC-F09M09-N: Mini Gender Changer DB9 F/M Null Modem - PA-STX-US: Power Adapter for STE(W)-501/601 & LNX/IMC (US Plug). Input: AC 100-240V 50/60Hz 0.4A ; Output: DC 12V 1.25A Technical Specifications - Technology - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet - Processing Type: Store and Forward - Protocol: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH - Flow Control: Xon/Xoff, RTC/CTS - Software - Configuration: Web (HTML), Telnet, Serial Console, Configuration Utility - OS Support: Windows & Linux - Utility Software: Yes - Virtual COM Mode: Yes - Performance - Transfer Rate: 110 bps to 460.8 Kbps - Ethernet Interface - Ethernet Port Count: 2 ports - 10/100 BASE-T(X): 2 × 10/100 BASE-T(X) - PoE Port: 1 × LAN(PD) - PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) - Serial Interface - Serial Port Count: 4 ports - Serial Interface: RS-232/422/485 - Other Interface - LED Indicator: PWR 1(2)/Ready, Link/ACT, Serial TX/RX - Mechanical Characteristics - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 66 × 95 × 81 mm - Weight: 0.85 lb (0.384 g) - Power Requirements - Power Connection: 6-Pin Terminal Block - Input Voltage: 12V–48V DC in 6-pin Terminal Block - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 7 Watts MAX - Overload Current Protection: Present - Reverse Polarity Protection: Present - Isolation Protection: 1.5KV - ESD: 15KV - Environmental Limits - Operating Temperature: -40° to 70° C (-40° to 158° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Regulatory Approvals - Certifications: FCC, CE - EMI: EN 55022: 2010, EN 55024: 2010, FCC Part 15B, Class A - EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 - Stability Testing: Shock: IEC60068-2-27, Free Fall: IEC60068-2-32, Vibration: IEC60068-2-6 - Safety: EN60950-1 - Green: RoHS Compliant - Warranty: 5 years
