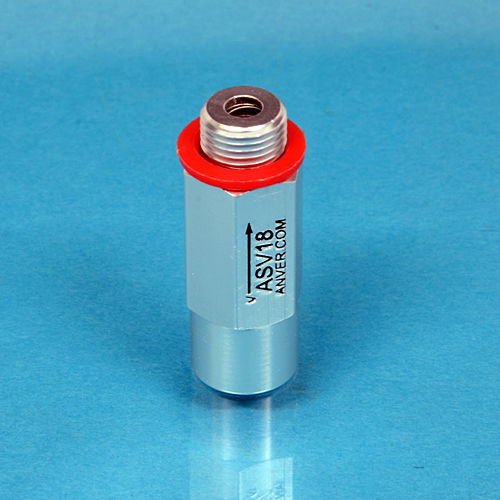

Regulating valve ASV series
threadedinoxplastic

regulating valve
regulating valve
regulating valve
regulating valve
regulating valve
Add to favorites
Compare this product


Characteristics

Function
regulating
Body
threaded, inox, plastic, anodized aluminum
Applications
vacuum, for automation, for packaging
Other characteristics
automatic, in-line, with filter
DN

4 mm (0.157 in)

Temperature

Min.: -18 °C (-0 °F)

Max.: 93 °C (199 °F)

Description

ANVER’s Automatic Flow Sensing Valves are an excellent choice when using large groups of vacuum cups where some may not fully cover a load. The sensing valves conserve vacuum for only the cups that are on the load. The more vacuum cups you have the more impressive the results. The closer to the cup the better they work as they have less air to evacuate and are faster to attach and release. The straight threads ensure all the cups are at the same level, so you can use a few to hundreds of these sensing valves on a vacuum plenum. These valves may allow for a smaller pump to be used in many applications, which pays for itself. • Spring-loaded float – engages vacuum seal and prevents vacuum loss • Versatile orientation on cup or in-line • Low cost • Vacuum conservation using metered flow sensing technology • Direct valve-to-vacuum cup mount Note: These valves are designed to not seal shut completely. This purposeful small vacuum loss allows the valves to have immediate vacuum when placed on a load. These valves are for non- and semi-porous loads. An example of a typical application is handling a complete layer of cans from a skid layer where some objects may be missing occasionally. Other applications include: • Plant operations • Pick and place
