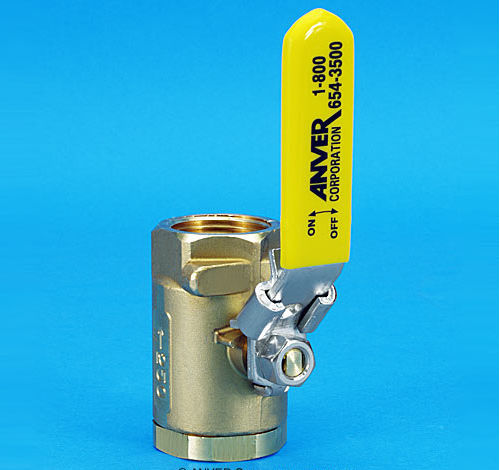

Ball valve BVV series
manualvacuumlocking

ball valve
ball valve
ball valve
ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
manual
Applications
vacuum
Other characteristics
compact, locking
DN

Max.: 1 in

Min.: 0.375 in

Pressure

Max.: 250 psi

Min.: 0 psi

Temperature

Max.: 121 °C (250 °F)

Min.: -18 °C (-0 °F)

Description

ANVER’s Vented Ball Valve with locking handle is designed to be an optional safety feature for vacuum lifters. Any residual vacuum that remains under a vacuum pad is eliminated when the system is turned off. This helps to prevent an operator from thinking there is still vacuum when there is not. • Vented for easy manual vacuum release • Forged body design, extends the life of the ball valve • Optimum flow design. • Blow-out proof stem • Locking handle for added safety • More economical and compact than 3-way valves • Suitable for all vacuum applications where manual on/off control is desired or needed. • Easy release of light loads, prevents entrapment of residual vacuum under vacuum pads. • Selective load release makes this ball valve ideal for use with hold-down or clamping devices.
