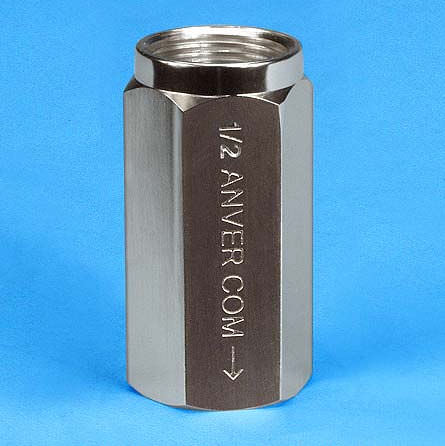

NPT check valve CV series
threadedfor vacuumplastic

NPT check valve
NPT check valve
NPT check valve
NPT check valve
NPT check valve
NPT check valve
NPT check valve
Add to favorites
Compare this product


Characteristics

Connexion
NPT
Body
threaded
Applications
for vacuum
Material
plastic, stainless steel, aluminum
Other characteristics
spring, compact
DN

Max.: 2 in

Min.: 0.25 in

Pressure

Max.: 15.9 bar

Min.: 0 bar (0 psi)

Temperature

Max.: 93 °C (199 °F)

Min.: -18 °C (-0 °F)

Description

These high-quality Check Valves are specially manufactured in the U.S.A. by ANVER, for ANVER lifting systems. Versatile, one-way Check Valves work with nearly all of ANVER’s vacuum applications where vacuum loss prevention is required. ANVER Check Valves can operate in any position with the highest flow available making them the best overall value for mid-range vacuum level systems in the industry. • One-piece, airtight, leak-proof design for years of trouble free service. • Sturdy, anodized aluminum body is compact and will not crack like other material. • Optimum flow design for use with all vacuum applications and very large flow rates (Cv). • Spring loaded to operate in any orientation. • Low cracking pressure allows you to get the most performance from your pumps. • Precision internal plastic valve with stainless steel springs eliminates corrosion from water contamination. • Internal seals: Nitrile Butadiene Rubber (NBR)
