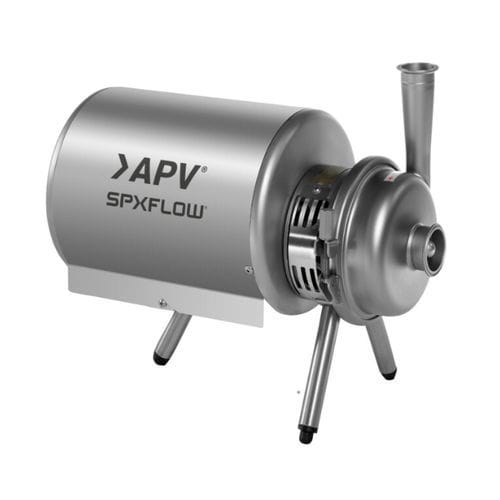

Chemical pump Wa+
for food productselectriccentrifugal

chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals, for food products
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
industrial, for the chemical industry, for the food industry, for the pharmaceutical industry, for the cosmetics industry, sanitary
Material
stainless steel
Other characteristics
with mechanical seals, aseptic
Flow

Min.: 0 us gal/min (0 l/min)

Max.: 176 us gal/min (666.23247 l/min)

Pressure

14 bar, 18 bar, 20 bar, 25 bar (203.053 psi)

Fluid temperature

95 °C, 150 °C (203 °F)

Description

Environmental requirements are getting strict. But today, aseptic production is already essential to certain processes - including the manufacture of long life food and pharmaceutical products. The Wa+ pump is the perfect solution. All seals, including the shaft seal, are designed as double seals. • Double mechanical shaft seals fitted for sterile flushing • Double O-ring sealing of pump housing fitted for sterile flushing • Special aseptic fittings fitted for sterile flushing Wa+ pumps ensure absolutely aseptic production processes with barrier media up to 150°C (320°F). With a Wa+ pump, the risk of contaminating the product and environment is thus reduced to an absolute minimum. Wa+ pumps are 3-A (optional) and EHEDG (European Hygienic Engineering & Design Group) certified. Wa+ pumped products ensure aseptic production processes with barrier media up to 320ºF (150ºC). With a Wa+ pump, the risk of contaminating the product and environment is thus reduced to an absolute minimum. Double mechanical shaft seals fitted for sterile flushing Double o-ring sealing of pump housing fitted for sterile flushing Special aseptic fittings fitted for sterile flushing The W+ pump series is based on a proven hydraulic design that promotes high operational efficiency and reduces noise and vibration levels while maintaining hygienic standards.
