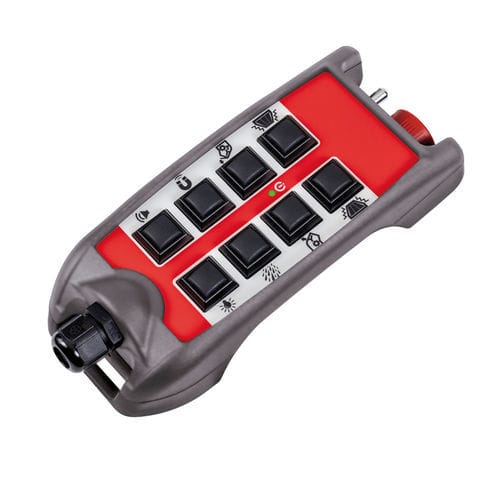

Corded remote control TGD-108 CBL

with toggle switchwith configurable buttonswith rocker switch

The TGD-108 CBL wired control excels with its ergonomic design and compact form. Standard with an emergency stop, it can be equipped with up to 8 single-step push buttons and an optional toggle switch. Button labeling is customized to customer requirements.

Tested according to:
• EN 60204-32

Technical Data:
• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 250 g
• Dimensions (W/D/H): 80 x 45 x 175 mm

Options:
• Emergency stop (2x NC)
• Up to 8 single-step push buttons (standard up to 10 mA)
• Toggle switch / push toggle (latching or momentary)
• Custom wiring (cable length, connector type)
• Custom labeling
• Shoulder strap
• Wall mount

Ergonomic design and flexible operation
Its compact design and intuitive control concept ensure safe and convenient operation. The easily accessible emergency stop and optional custom configuration provide maximum flexibility.

Industrial-grade and standard-compliant
The TGD-108 CBL meets EN 60204-32 safety requirements. IP65 rating and wide temperature range guarantee reliable function in harsh environments, while remaining compact and easy to handle.

Versatile and customer-specific
Custom button labeling and flexible options make the device a durable and adaptable solution for a wide range of industrial applications.
