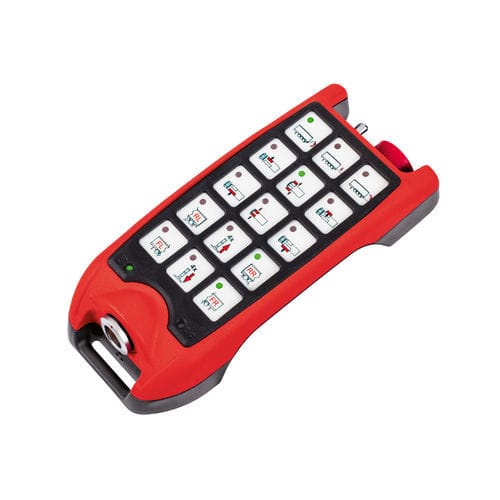

Radio control TGD-F15

with toggle switchwith configurable buttonswith rocker switch

The TGD-F15 is a compact handheld control with 15 single-stage push buttons, RGB status display, button illumination, and optional cable operation.

Tested according to:
• EN ISO 13849
• EN 60204-32
• EN 62061
• EN 62745

Technical Data:
• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 300 g
• Dimensions (W/D/H): 80 x 45 x 175 mm
• Frequency range: 863–930 MHz; 2.4 GHz
• Battery: Integrated Li-Ion
• Operating time: up to 80 hours
• Range: > 100 m

Options:
• STOP Cat. 3 PLe / SIL3
• 15 single-stage push buttons up to Cat. 1 PLc / SIL1
• Button illumination
• RGB status display
• Toggle switch / push toggle up to Cat. 2 PLd / SIL2
• Cable operation with integrated charging
• Multi-mode operation
• Custom shutdown time
• Custom labeling
• Shoulder strap
• Wall mount

Compact design, strong performance
Three-row button layout allows intuitive and safe operation of 15 push buttons, even with gloves. Lightweight and ergonomic for mobile use.

Flexible operation with radio and cable
Cable mode ensures reliable data transmission while charging the Li-Ion battery. Radio operation (863–930 MHz or 2.4 GHz) provides a range > 100 m.

Versatile use in demanding industries
IP65 housing and wide temperature range guarantee reliable operation. Accessories like shoulder strap and wall mount improve comfort and integration.
