Radio control TGE-112S

joystickwith toggle switchwith configurable buttons

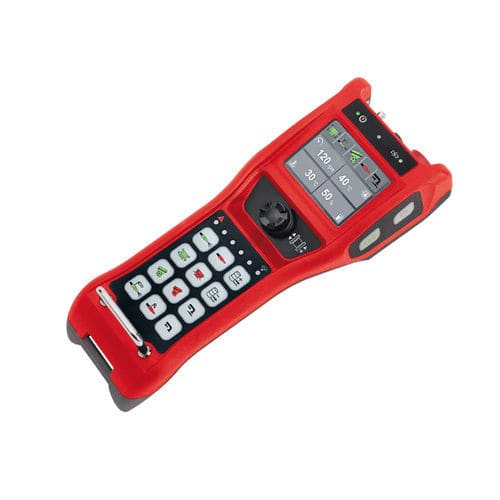

The TGE-112S handheld transmitter is a versatile all-rounder in pushbutton control, easily customized for specific requirements.

Certified according to:
• EN ISO 13849
• EN 60204-32
• EN 62061
• EN 62745

Technical Data:
• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 500 g
• Dimensions (W/D/H): 100 x 50 x 250 mm
• Frequency range: 863–930 MHz; 2.4 GHz
• Battery: Integrated Li-Ion
• Operating time: up to 10 hours
• Range: > 100 m

Options:
• STOP Cat. 3 PLe / SIL3
• Thumb joysticks up to Cat. 3 PLe / SIL3
• 12 single-stage pushbuttons up to Cat. 3 PLe / SIL3
• 4 single-stage pushbuttons up to Cat. 1 PLc / SIL1
• Button illumination
• 6 RGB LEDs for feedback/status
• 2.8" color display, freely programmable via Qt
• Brightness sensor
• Toggle/snap buttons up to Cat. 2 PLd / SIL2
• Rotary switches
• Potentiometers
• Non-contact safety switch (PSEN)
• Vibration alarm
• Cable control with integrated charging
• Multi-mode
• Level switching
• Custom shut-off time
• Custom labeling
• Shoulder strap
• Wall mount
• FIDLOCK mount (+belt clip)
• Integrated magnetic mount

Compact, powerful, intuitive
The TGE-112S combines robust technology with flexibility. 16 well-arranged buttons, 12 safety-certified, can be illuminated. Ergonomic design and custom labeling ensure intuitive operation.

Modular and expandable
Thumb joysticks, 2.8" color display, toggle switches, rotary switches, or potentiometers can be added. RGB LEDs, vibration alarm, and brightness sensor enhance safety and clarity.

Safe and mobile
IP65, range > 100 m, and up to 10 hours of operation make it ideal for mobile use. Cable mode with charging ensures uninterrupted operation. Accessories such as shoulder strap, wall mount, or magnetic holder increase flexibility.
