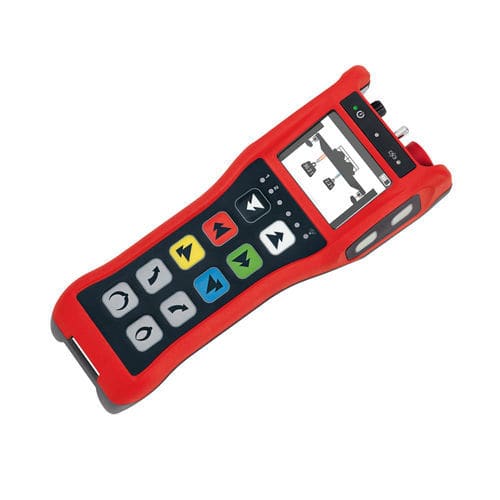

Radio control TGE-210

with toggle switchwith configurable buttonsrotary switch

The TGE-210 pushbutton device features 14 individually labeled buttons – 10 two-stage and 4 single-stage – easily adaptable to different requirements.

Tested according to:
• EN ISO 13849
• EN 60204-32
• EN 62061
• EN 62745

Technical Data:
• Protection class: IP65
• Temperature range: -20 to +60 °C
• Weight: approx. 500 g
• Dimensions (W/D/H): 100 x 50 x 250 mm
• Frequency range: 863–930 MHz; 2.4 GHz
• Battery: integrated Li-Ion
• Operating time: up to 10 hours
• Range: > 100 m

Options:
• STOP Cat. 3 PLe / SIL3
• 10 two-stage pushbuttons up to Cat. 1 PLc / SIL1
• 4 single-stage pushbuttons up to Cat. 1 PLc / SIL1
• 6 RGB LEDs for feedback or status
• 2.8“ color graphic display freely programmable via Qt
• Brightness sensor
• Toggle/snap buttons up to Cat. 2 PLd / SIL2
• Multi-step rotary switch
• Potentiometer
• Non-contact safety switch (PSEN)
• Vibration alarm
• Cable control with integrated charging function
• Multi-mode operation
• Level switching
• Custom shutdown time
• Individual labeling
• Shoulder strap
• Wall mount
• FIDLOCK mount (+ belt clip)
• Integrated magnetic mount

Versatile operation
The 14 buttons and ergonomic layout ensure intuitive operation even in complex tasks. Suitable as a central control unit or mobile device.

Enhanced visualization
Optional 2.8“ color display, RGB LEDs, brightness sensor, and optional toggle or rotary switches provide clear feedback. Vibration alarm enhances operation in noisy environments.

Robust and mobile
IP65, integrated battery, and range >100 m ensure reliable use. Cable operation with charging, magnetic mount, FIDLOCK clip, or shoulder strap allows flexible mounting and ergonomic handling.
