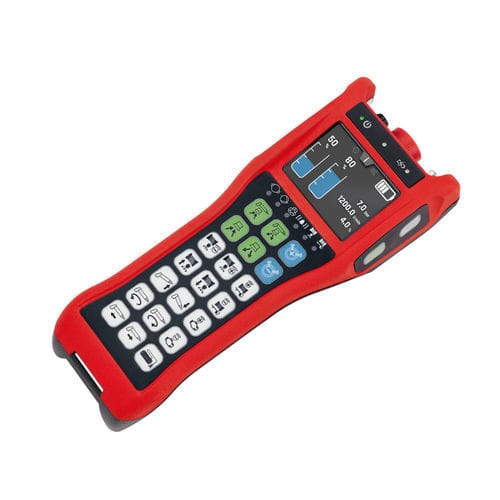

Radio control TGE-121

with toggle switchwith configurable buttonsrotary switch

The TGE-121 control device can be quickly adapted to various specific requirements. It features 25 single-stage pushbuttons, with 21 of them optionally certified to Cat. 3 PLe / SIL3.

Certified according to:
• EN ISO 13849
• EN 60204-32
• EN 62061
• EN 62745

Technical data:
• Protection class: IP65
• Operating temperature: -20 to +60 °C
• Weight: approx. 500 g
• Dimensions (W/D/H): 100 x 50 x 250 mm
• Frequency range: 863–930 MHz; 2.4 GHz
• Battery: integrated Li-Ion
• Operating time: up to 10 h
• Range: > 100 m

Options:
• STOP Cat. 3 PLe / SIL3
• 21 single-stage pushbuttons up to Cat. 3 PLe / SIL3
• 4 single-stage pushbuttons up to Cat. 1 PLc / SIL1
• 6 RGB LEDs for feedback/status
• 2.8" color display programmable via Qt
• Brightness sensor
• Toggle/switches (latching or momentary)
• Multi-step rotary switches
• Potentiometers
• Non-contact safety switch (PSEN)
• Vibration alarm
• Cable control with integrated charging
• Multi-mode
• Level switching
• Custom shut-off time
• Individual labeling
• Shoulder strap
• Wall mount
• FIDLOCK mount (+belt clip)
• Integrated magnetic mount

Maximum flexibility
With 25 pushbuttons, customizable labeling, and clear layout, the TGE-121 provides intuitive and safe operation even in complex or safety-critical tasks.

Enhanced control
Optional features like the 2.8" programmable display, RGB LEDs, brightness sensor, and additional switches increase usability. The non-contact safety switch (PSEN) and vibration alarm enhance operational safety.

Robust and mobile
IP65-rated housing, robust construction, 100+ m range, and up to 10 h battery life. Optional cable operation allows charging during use. Flexible carrying options include magnetic mount, FIDLOCK belt clip, or shoulder strap.
