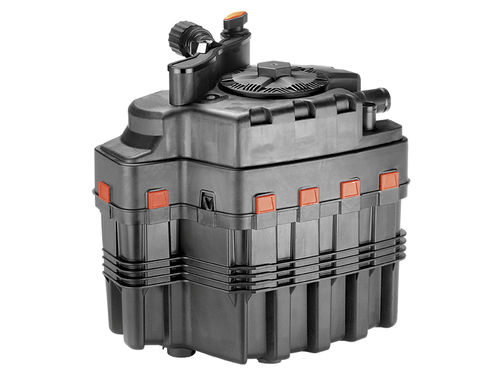

Assembly tank securitystoragefilter
Add to favorites
Compare this product
Characteristics
- Function
- storage, filter, security, filling, assembly
- Product applications
- for mineral oil, level indicator, can, housing, tank
- Material
- plastic
- Type
- pressure-less
- Other characteristics
- with filter
- Capacity
Max.: 60 l
(15.85 gal)Min.: 0 l
(0 gal)
Description
The ARGO-HYTOS tank solutions allow the greatest possible freedom in shaping, as a result of which even tight spaces can be optimally utilized. In addition to the filter housing and the filling screen, an oil level indicator can also be integrated in the tank. Another positive aspect are the so-called “quick-connect ports”, for the assembly of which no tools are necessary. The connections are simply plugged onto the corresponding tank nozzles and fixed by a securing clip.
Technical data
Tank capacity:
Vmax up to 60 l
Temperature:
Tmax: - 30°C…+ 100°C
Short-term up to + 120°C
Hydraulic fluid:
Mineral oil and biodegradable fluids (HEES and HETG)
Integrable filter function:
Return filter 10EX2…30P
Suction filter 16 E…280 µm
Ventilating filter 2CL
Filling filter 140…450 µm
