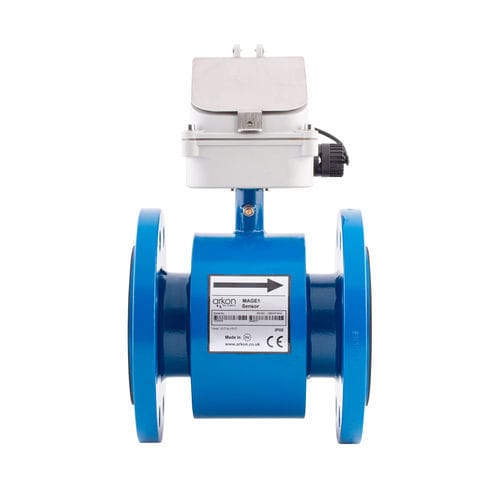

Electromagnetic flowmeter MAGE1

volumeglassplastic

MAGE1 is an economic flowmeter with a carbon steel sensor and plastic transmitter that satisfies standard customer requirements. It is mains powered flowmeter (9-35 VDC) with 4-20 mA output, RS485 communication, and an internal data logger. Transmitter specification Accuracy - ±0,5% (0,5-10 m/s) of actual value Power supply - 9-35 VDC Communication - Modbus RTU Flow direction - Bi-directional measurement Ambient temperature - -20 to 60°C Display - LCD 128 x 64 px graphical, sleep mode Control - 3 touch buttons Housing material - Glass filled polyamide Connector - CA 6 GS Connector Electronics protection - IP67 Low flow cut-off - 2% of the full scale Other features - Test of excitation coils Empty pipe detection Earthing through 3rd and 4th electrodes 4-20 mA output - Max. current 24 mA Digital communication - RS485 communication bus +I/O Data-logger - Flash memory 131072 records 15 seconds minimal record interval Saves date, time, and total volume Cable length - 3 m as standard, other on request
