Ball valve

pneumatically-operatedtransfer

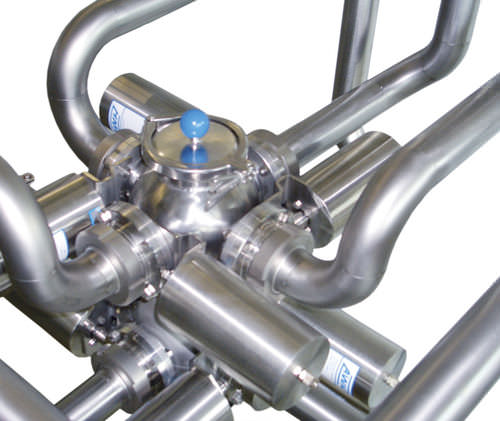

The Vent-IGEL only requires little space due to its compact design. It features service-friendly, clearly arranged design and comes with an alternative to complex valve cluster and coupling panels. The Vent-IGEL has various different products and cleaning lines and can be hanged up to a tank.It is also possible to have a single input line and switch same to several; different lines.the Vent-IGEL also is inexpensive compared to other valve clusters on the basis of 4/2 way seat valves. A retrofit with additional modules in case of an expansion of the installation is not a dilemma either. The interconnection of the single basic modules can be realized by clamp connectors in accordance with DIN 32676, connectors in accordance with DIN 11851, flange connections or connectors in accordance with DIN 11864.And lastly,The Vent-IGEL can be supplied with nominal widths of DN25 to DN80.
