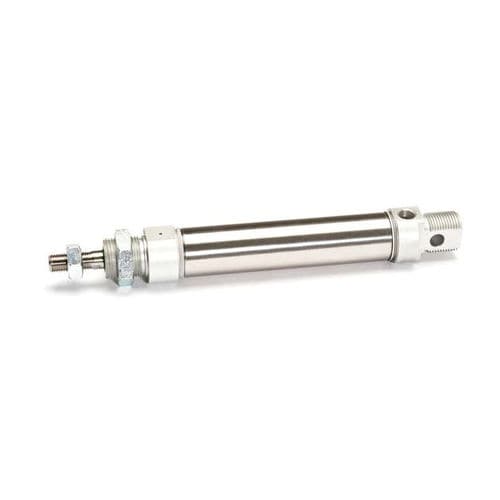

Micro cylinder Z Series

pneumaticdouble-roddouble-acting

SERIE Z ROUND CYLINDER Ø32 mm In order to keep meeting the needs of the market, Artec has expanded its SERIE Z range of stainless steel round cylinders by adding bore 32 mm. The new execution in diameter 32 mm is not included in the ISO 6432 standard (unlike the rest of SERIE Z range, cylinders with bore 16, 20, and 25 mm), but it maintains all technical characteristics of ISO 6432 cylinders. SERIE Z pneumatic cylinders are entirely made of AISI 304 stainless steel, with crimped round tube, threaded covers, and integrated rear hinge. In the standard version there is a rod seal suitable for contact with corrosive agents and food (it is FDA approved), however seals for high temperature are also available. These pneumatic cylinders are the ideal solution for applications in sectors such as food, chemical and pharmaceutical. ISO 6432 Stainless Steel Micro Cylinders In stainless steel AISI 304 Available in bores from Ø 16 to Ø 32 mm High temperature execution on request Extremely resistant thanks to the double rolling assembly On request, in accordance to ATEX Directive 2014/34/EU classification II 2 GD c T4
