short-stroke cylinder
short-stroke cylinder
QN series

Stroke : 4 mm - 25 mm
Pressure: 2 bar - 10 bar
Ambient temperature: 0 °C - 80 °C

Series QN single-acting short-stroke cylinders have been designed so that they can be installed in very small spaces. Due to the compactness and sturdiness of these cylinders, they are ...

short-stroke cylinder
short-stroke cylinder
QP, QPR series

Stroke : 1 mm - 200 mm
Bore: 12 mm - 100 mm
Pressure: 1 bar - 10 bar

Series QP - QPR cylinders are available in 10 bore sizes, from ø12 to ø100. Their compact dimension allows the installation in small spaces. Because of their particular construction, they can be mounted by means of feet ...

pneumatic cylinder
pneumatic cylinder
QL

Stroke : 5 mm - 300 mm
Pressure: 1 bar - 10 bar
Rod diameter: 12 mm - 50 mm

Series QL short-stroke cylinders are available in different bore sizes and are designed to cover a wide range of application needs, from light duties in packaging or assembly to the demanding requirements ...

pneumatic cylinder
pneumatic cylinder
SSCY series

Stroke : 5 mm - 165 mm
Bore: 12 mm - 100 mm
Pressure: 10 bar

Compact cylinders suitable for installation in limited spoces: • configuration with or without mognet • anti-rotation version and with built-in fixings • possile choice of NBR, POLYURETHANE or FKM/FPM gaskets • special ...

pneumatic cylinder
pneumatic cylinder
OFL series

Stroke : 15, 10, 30 mm
Force: 300, 130 N

• Double-acting drive. • Two sizes available. • Through-hole to provide supply to the vacuum cups. • Three slots with balls for anti-rotation of the rod. • Standard shank for mounting with MFI products. • Optional magnetic sensors. • ...

pneumatic cylinder
pneumatic cylinder
ADVC / AEVC

Stroke : 2.5 mm - 25 mm
Pressure: 2.5 bar - 8 bar
Force: 5.7 N - 4,712 N

Fast acting cylinder with outstanding tensile force ratio and hole pattern for fastening to VDMA 24562. • Very short overall length • High forces in a compact size • Piston rod with internal or external ...

pneumatic cylinder
pneumatic cylinder
1500 series

Stroke : 20 µm - 100,000 µm
Ambient temperature: -5 °C - 150 °C

... _. A complete range of clamps makes them easy to install under any conditions. It is interesting to note that as these cylinders (from Ø 32 to Ø 100) have anchoring holes with the same lead and thread as those of series ...

short-stroke cylinder
short-stroke cylinder
RM/92020/M/15

Stroke : 15 mm
Pressure: 1 bar - 10 bar
Ambient temperature: -10 °C - 80 °C

... length of a corresponding ISO/VDMA model Fully non-corrodible specification Medium: - Compressed Air Port size: - M5 Cylinder diameter: - 20 mm

bellows cylinder
bellows cylinder
PM/31061

Stroke : 55 mm
Pressure: 0 bar - 8 bar
Force: 11,400 N

No maintenance or lubrication Ideal for short stroke, high-force applications High vibration isolation level Medium: - Compressed Air Port size: - G1/2

short-stroke cylinder
short-stroke cylinder
441 series

Stroke : 100 mm
Ambient temperature: -20 °C - 70 °C

The AVENTICS Series 441 is a line of robust, compact short-stroke pneumatic cylinders. The devices have a durable single/double rod and anti-rotation device for extended service life. The cylinders ...

compact cylinder
compact cylinder
21287 P1P series

Stroke : 0 mm - 500 mm
Force: 138 N - 4,418 N
Speed: 0.01 m/s - 0.77 m/s

... installation there are holes through the cylinder body that can be used with through bolts or female threads on both front and rear plates. A wide range of ISO 15552 cylinder mountings are available for ...

pneumatic cylinder
pneumatic cylinder
P1Q series

Stroke : 5 mm - 100 mm
Force: 51 N - 4,702 N

... to Ø100mm is a compact ISO 15524 cylinder with standard temperature -5°C to +60°C. Magnetic or non magnetic versions for an economical, compact design suited for a variety of applications. Parker’s P1Q series cylinders ...

bellows cylinder
bellows cylinder
9109

Stroke : 20 mm - 170 mm
Force: 2,290 N - 237,600 N

... choice for applications requiring short stroke, high thrust single acting actuators. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders. ...

electric cylinder
electric cylinder
LD75

Stroke : 20 mm - 130 mm
Force: 750 N
Speed: 50 mm/s

Linear actuator for extreme conditions The LD75 is specially designed for use in extreme conditions. Ambient temperatures from -40° to 85° Celsius* can do as little harm as the jet of a high-pressure cleaner or the strong vibrations ...

electric cylinder
electric cylinder
010 series

Stroke : 40 mm - 100 mm
Force: 50 N - 500 N
Speed: 0.8 in/s

010 Electric cylinder The compact electric cylinders of the component 010 are especially designed for demanding situations. They are equipped with high-quality, non-ferrous motors, withstand extreme ...

threaded body cylinder
threaded body cylinder
B1.464

Stroke : 4, 8 mm
Pressure: 0 bar - 500 bar
Force: 15.7 kN - 40.2 kN

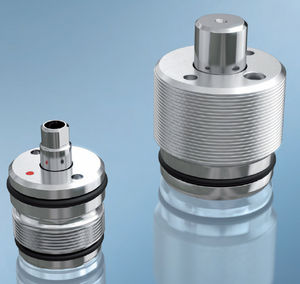

B1.464 Threaded-body cylinders B1.464 Threaded-body cylinders short stroke single acting with spring return max. operating pressure 500 bar plunger design piston ...

short-stroke cylinder
short-stroke cylinder
2.1330

Stroke : 2.5, 3 mm
Pressure: 0 bar - 400 bar
Force: 22, 54 kN

2.1330 Hollow-piston cylinders 2.1330 Hollow-piston cylinders single acting max. operating pressure 400 bar max. clamping force: 22 .. 54 kN clamping stroke: 2.5 .. 3 mm spring force: 0.27 .. ...

guided cylinder
guided cylinder
Type 31

Stroke : 25 mm - 150 mm
Pressure: 3 bar - 8 bar
Rod diameter: 12, 16, 20, 25 mm

... the cylinder. This guidance avoids the problems of buttressing, regularly encountered with ultra-short guides. These pneumatic cylinders are robust and reliable, even at high ...

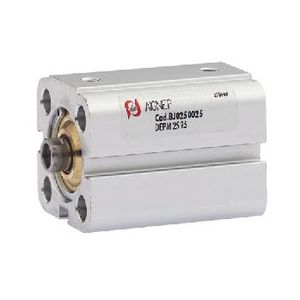

short-stroke cylinder
short-stroke cylinder

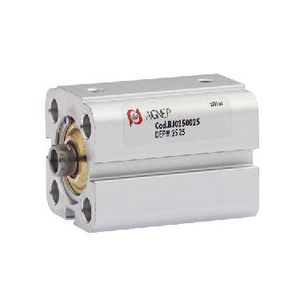

BB1225

Stroke : 15, 20, 5, 25, 10 mm
Bore: 12, 16, 20, 25 mm
Pressure: 1 bar - 10 bar

... Seal 8 Aluminium Piston 9 Plastoferrite Magnet 10 O-Ring in NBR 11 Zinc-plated steel Piston Nut 12 Anodised aluminium Cylinder shape body 13 Anodised aluminium Back cover Fluids Filtered and lubricated compressed ...

See the other products
AIGNEP
short-stroke cylinder
short-stroke cylinder

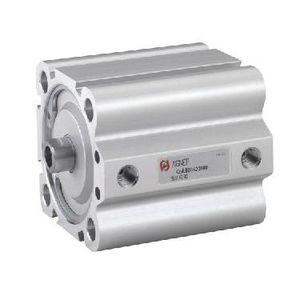

BD32100

Stroke : 5 mm - 50 mm
Bore: 32 mm - 100 mm
Pressure: 1 bar - 10 bar

... Seal 8 Aluminium Piston 9 Plastoferrite Magnet 10 O-Ring in NBR 11 Zinc-plated steel Piston Nut 12 Anodised aluminium Cylinder shape body 13 Anodised aluminium Back cover Fluids Filtered and lubricated compressed ...

See the other products
AIGNEP
short-stroke cylinder
short-stroke cylinder
BF1225

Stroke : 5 mm - 50 mm
Bore: 12, 16, 20, 25 mm
Pressure: 1 bar - 10 bar

... Seal 8 Aluminium Piston 9 Plastoferrite Magnet 10 O-Ring in NBR 11 Zinc-plated steel Piston Nut 12 Anodised aluminium Cylinder shape body 13 Anodised aluminium Back cover Fluids Filtered and lubricated compressed ...

See the other products
AIGNEP
pneumatic cylinder
pneumatic cylinder

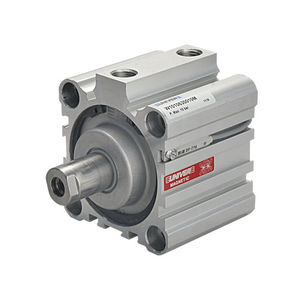

W series

Stroke : 5 mm - 75 mm
Force: 23 N - 7,360 N

W 12 -100 mm - Short stroke cylinders The wide range of versions and the project originality, make UNIVER Short stroke cylinders the ...

short-stroke cylinder
short-stroke cylinder
CC series

Stroke : 20 mm - 50 mm
Bore: 20 mm - 50 mm
Pressure: 160 bar

... sensors Caracteristics The CC short-stroke hydraulic cylinders can meet the need for small-sized presses. The main feature of these cylinders is their reduced overall dimensions, ...

pneumatic cylinder
pneumatic cylinder
ODM - T1

Stroke : 10 mm - 500 mm

Available in bores Ø 8-10-12-16-20-25. Execution for high temperature on request. Models with or without cushioning. Extremely resistant thanks to the double rolling assembly procedure.

See the other products
ARTEC SRL
pneumatic cylinder
pneumatic cylinder
ODM-T2

Stroke : 10 mm - 500 mm

Available in bores Ø 8-10-12-16-20-25. Execution for high temperature on request. Models with or without cushioning. Extremely resistant thanks to the double rolling assembly procedure.

See the other products
ARTEC SRL
pneumatic cylinder
pneumatic cylinder
RS

Force: 3.2 N - 73 N

The short stroke cylinders, by Artec Pneumatic Components, are available in bores Ø 8-12-20-32-50-63, and has a body made of solid bar. It has a non-magnetic model, that can be both ...

See the other products
ARTEC SRL
pneumatic cylinder
pneumatic cylinder
CU series

Stroke : 5 mm - 80 mm

CU series short stroke cylinders. According to project U.N.I.T.O.P. - RUP/7 Bores from 16 to 100mm, with magnetic piston single and double acting with end stroke elastic cushions.

short-stroke cylinder
short-stroke cylinder
HFCL series

Stroke : 50, 45 mm
Pressure: 700 bar
Force: 496 kN - 5,114 kN

The LUKAS short-stroke lock nut cylinders are very compact and have robust locking nuts that securely support loads of up to 550 tonnes over a longer period of time while requiring little space. The mechanical ...

short-stroke cylinder
short-stroke cylinder
DA 100

Stroke : 24 mm

short-stroke cylinder
short-stroke cylinder
RSS series

Stroke : 1.5 in - 3 in
Bore: 2 in - 8 in
Pressure: 8,943 psi - 10,393 psi

... Spring-Return cylinder. The RSS Series cylinder is ideal for confined areas from 3 1/2" (88,9 mm) to 11 7/16" (290,2 mm) clearance. Power Tech plated piston rods and gland nuts resist scoring and corrosion. ...

pneumatic cylinder
pneumatic cylinder
DAL - DALM

Stroke : 25 mm - 300 mm
Bore: 125, 160, 200, 250 mm
Pressure: 0.5 bar - 12 bar

The new compact cylinders DAL e DALM series LARGE are available with diameter 125-160-200-250 to complete the range of already existing FARBO short stroke cylinders. ...

See the other products
Farbo
pneumatic cylinder
pneumatic cylinder
225 series

Stroke : 16 mm - 25 mm

Short-stroke cylinders are offered in 3 different bore sizes: 16, 20, 25 mm. They are available in double acting, through-rod double acting, single acting front spring and non-rotating version. This ...

hydraulic cylinder
hydraulic cylinder
NSCS series

Stroke : 38 mm - 62 mm

COMPACT CYLINDERS BETEX NSCS series, short stroke, single acting, spring return Capacity : 10 - 100 ton Stroke : 38 - 62 mm Max working pressure ...

pneumatic cylinder
pneumatic cylinder
SH series

low-profile cylinder
low-profile cylinder
HVL series

Stroke : 6 mm
Pressure: 700 bar
Force: 10 tf - 104 tf

... design. The base of all HVL cylinders must be fully supported during use. Single acting load return Nitrocarburised piston rod Low friction bearing surfaces Anti-extrusion seals Customised and special design cylinders ...
