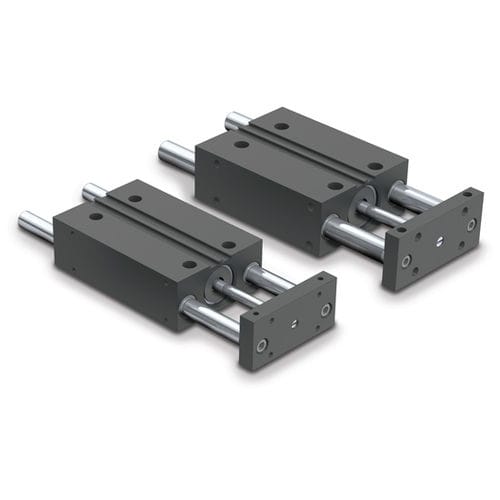

Pneumatic cylinder Power-Block
with guided piston roddouble-actingaluminum

pneumatic cylinder
pneumatic cylinder
pneumatic cylinder
pneumatic cylinder
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Technology
with guided piston rod
Configuration
double-acting
Material
aluminum
Other characteristics
lightweight, short-stroke, standard
Stroke

Min.: 0 mm (0 in)

Max.: 76 mm (2.992 in)

Force

Min.: 0 N

Max.: 534 N

Description

The Power-Block pneumatic linear thruster features two precision steel guide rods with composite bearings to provide positive load support. Loaded with standard features, the Power-Block pneumatic linear thruster is the ideal solution to a wide variety of short-stroke applications. Use alone or in conjunction with other Tolomatic linear actuators. • Force output up to 120 lbs (534 N) • Maximum stroke of 3 inches (76 mm) • Durable and tough lightweight extruded aluminum design offers low profile • Options include stop collar/bumper kit, dual tooling plates and switches
