Pneumatic cylinder MXH10-5
precisionshort-strokewith integrated guides

Pneumatic cylinder - MXH10-5 - ZJHD Automation Technology Co., Ltd. - precision / short-stroke / with integrated guides

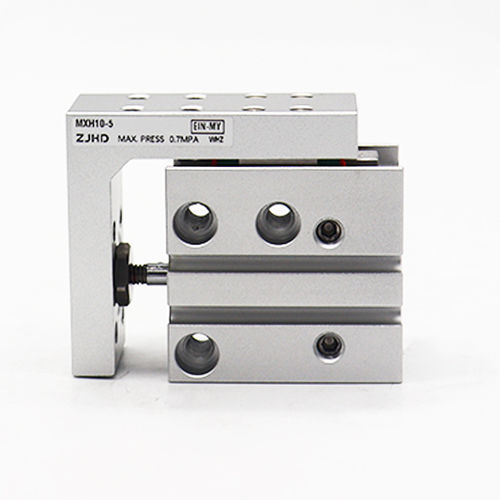

Pneumatic cylinder - MXH10-5 - ZJHD Automation Technology Co., Ltd. - precision / short-stroke / with integrated guides
Pneumatic cylinder - MXH10-5 - ZJHD Automation Technology Co., Ltd. - precision / short-stroke / with integrated guides - image - 2
Pneumatic cylinder - MXH10-5 - ZJHD Automation Technology Co., Ltd. - precision / short-stroke / with integrated guides - image - 3
Pneumatic cylinder - MXH10-5 - ZJHD Automation Technology Co., Ltd. - precision / short-stroke / with integrated guides - image - 4
Add to favorites
Compare this product
Go to the ZJHD Automation Technology Co., Ltd. website for more information

Characteristics

Type
pneumatic
Other characteristics
compact, precision, with integrated guides, short-stroke
Stroke

5 mm
(0.197 in)

Bore

10 mm
(0.39 in)

Description

Product overview
  • ZJHD Compact Slide Pneumatic Cylinder MXH10-5
  • Integration of a high-rigidity linear guide and the worktable to increase structural stiffness
  • Table cylinder designed for precise linear movement and high non-rotating accuracy
  • Allowable moment improved up to 6× or more compared with conventional models
  • Piping/connections available from 3 directions for flexible installation


Description for ZJHD MXH10-5
  • Bore size: 10 mm
  • Cylinder stroke (standard): 5 mm
  • Magnet: Without magnet


Technical specifications
  • Brand: ZJHD
  • Model / Series: MXH series
  • SKU: MXH10-5
  • Bore size: 10 mm
  • Cylinder stroke (standard): 5 mm
  • Magnet: Without magnet
  • Integrated high-rigidity linear guide and worktable for improved rigidity
  • Excellent linear movement and non-rotating accuracy
  • Allowable moment improved up to 6× or more
  • Piping options: from 3 directions
