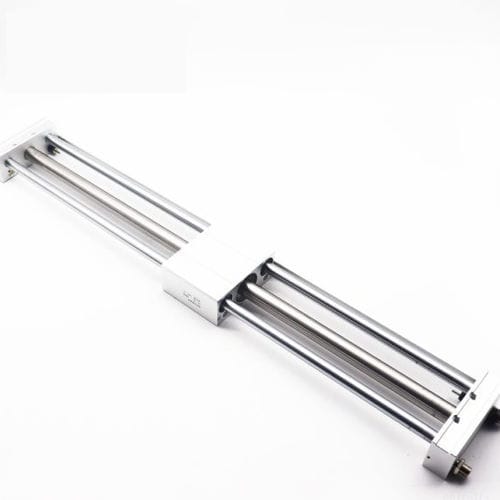

Pneumatic cylinder RMTL16-500SArodlessmagnetic pistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- magnetic piston, rodless
- Configuration
- double-acting
- Other characteristics
- compact, with adjustable cushions, guided, with integrated guides, with shock absorber, magnetically-coupled
- Stroke
500 mm
(19.685 in)- Bore
16 mm
(0.63 in)
Description
Short description
Technical table
Specifications
- RMTL Series Guided Rodless Cylinder RMTL16-500SA
- This magnetic pneumatic rodless cylinder features a movable piston fitted with annular magnets. The movable carriage is equipped with magnets to provide magnetic coupling between carriage and piston. The carriage slides freely along the main tube.
- Dust-proof design due to isolation between the carriage and piston.
- Compact footprint.
- Non-adjustable rubber bumpers and adjustable pneumatic cushioning at both ends ensure smooth operation; using shock absorbers improves cushioning performance.
- Double guides ensure high positional accuracy and can withstand side loads or offset loads.
Technical table
- Model: RMTL — Guided rodless cylinder (Magnetic coupled / Ball bearing)
- Bore size: 16 — 16 mm
- Stroke: 500 — 500 mm
- Magnet: S — With magnet
- Cushion type: A — With two shock absorbers
- Thread type: – — M5
- Port size: – — M5X0.8
- Acting type: – — Double acting
Specifications
- Model: RMTL
- Bore size: 16 mm
- Stroke: 500 mm
- Magnet: With magnet (S)
- Cushion type: With two shock absorbers (A)
- Thread type: M5
- Port size: M5X0.8
- Acting type: Double acting
- SKU / Reference: RMTL16-500SA
