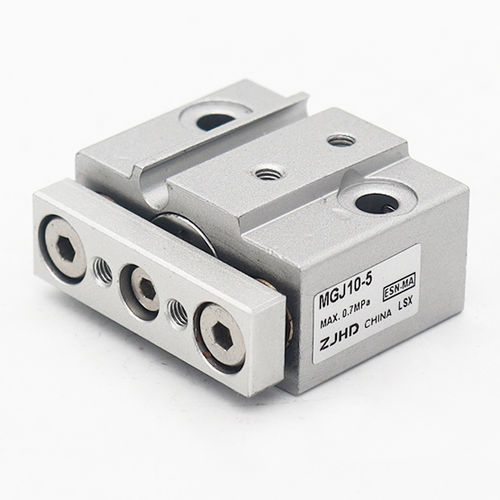

Pneumatic cylinder MGJ10-5with guided piston roddouble-actingindex
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- with guided piston rod
- Configuration
- double-acting
- Applications
- for robots, for materials handling, index
- Other characteristics
- compact, integrated, externally-guided, miniature
- Stroke
5 mm
(0.197 in)- Bore
10 mm
(0.39 in)
Description
Product overview
Technical details
Application and benefits for B2B use
- ZJHD MGJ series miniature guide-rod cylinder, model MGJ10-5
- Bore: 10 mm — Standard stroke: 5 mm
- Double-acting compact cylinder with guide rods to prevent rotation
- Two auto switches can be mounted even for a 5 mm stroke
- Integral wiring/piping directed to one side; non-rotating accuracy: ±0.1°
Technical details
- Model: MGJ (double acting)
- Specific model/SKU: MGJ10-5
- Bore size: 10 mm
- Cylinder stroke: 5 mm (standard)
- Magnet: without magnet
- Overall length: 23 + stroke mm (reference MGJ6)
- Width: 29 mm (reference MGJ6)
- Height: 14.5 mm (reference MGJ6)
Application and benefits for B2B use
- Designed for compact industrial actuations requiring precise position control with anti-rotation
- Simplifies sensor installation with ability to fit two auto switches on short strokes
- Integrated wiring/piping reduces assembly time and routing complexity
- Suitable for automated machinery, pick-and-place units and indexing mechanisms
