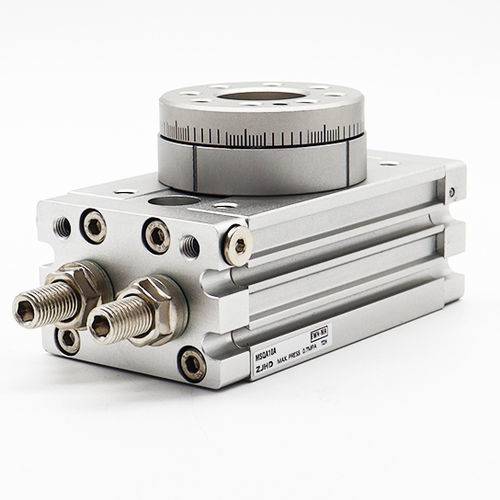

Compact rotary table MSQA10A

high-precisionrack-and-pinion

Short description

• ZJHD MSQA10A rack-and-pinion rotary table integrating a rotary actuator
• Built-in angle adjustment mechanism for precise positioning
• Facilitates easy alignment between load and table body for installation
• Selectable shock absorber: built-in or external type

Description
The MSQA10A is a high-precision rack-and-pinion rotary table from the MSQ series designed for compact rotary positioning tasks. It integrates a rotary actuator and a table into a single unit, reducing assembly steps and improving repeatability. The A suffix denotes an adjustment bolt for fine angular alignment. A magnet is provided for position sensing.

Technical data

• Model — MSQA — High precision type
• Size — 10
• Suffix — A — With adjustment bolt
• Magnet — With magnet
• End port thread — M5X0.8
• Side port thread — M5X0.8

Features / specifications

• Brand: ZJHD
• Model / SKU: MSQA10A
• Series: MSQ
• Type: Rack-and-pinion rotary table integrated with rotary actuator
• Precision: High precision (MSQA)
• Size: 10
• Suffix: A (with adjustment bolt)
• Magnet: Included
• Angle adjustment mechanism: Equipped
• Mounting: Designed for easy alignment of load and body
• Shock absorber: Built-in or external type selectable
