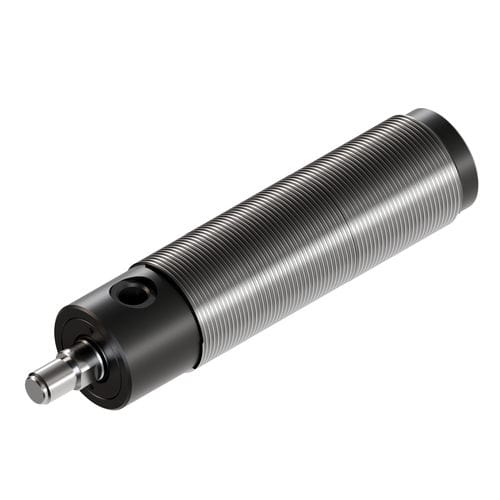

Hydraulic cylinder CB 08 series
pistondouble-actingsteel

Hydraulic cylinder - CB 08 series - A&T Fluid solutions - piston / double-acting / steel
Hydraulic cylinder - CB 08 series - A&T Fluid solutions - piston / double-acting / steel
Add to favorites
Compare this product
Go to the A&T Fluid solutions website for more information

Characteristics

Type
hydraulic
Technology
piston
Configuration
double-acting
Material
steel
Applications
clamping, for machine tools
Other characteristics
compact, positioning, threaded body, short-stroke
Stroke

25 mm, 50 mm, 80 mm, 100 mm
(0.984 in, 1.969 in, 3.15 in, 3.937 in)

Bore

36 mm, 48 mm, 68 mm
(1.42 in, 1.89 in, 2.68 in)

Pressure

Min.: 1 bar
(14.5 psi)

Max.: 250 bar
(3,625.94 psi)

Rod diameter

25 mm, 35 mm, 55 mm
(1 in, 1 in, 2 in)

Force

Min.: 1 kgf

Max.: 6,000 kgf

Operating Temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

Extremely compact dimensions Various fields of application: locking, riveting, marking, etc. Wide range of fixing options Accessories available for mounting Custom solutions available upon request Double-acting short-stroke cylinders with threaded outer body for easy application and positioning on specific equipment. These cylinders are used in the construction of equipment for blanking, drawing and drilling operations on sheet metal or tubes of limited thickness.
