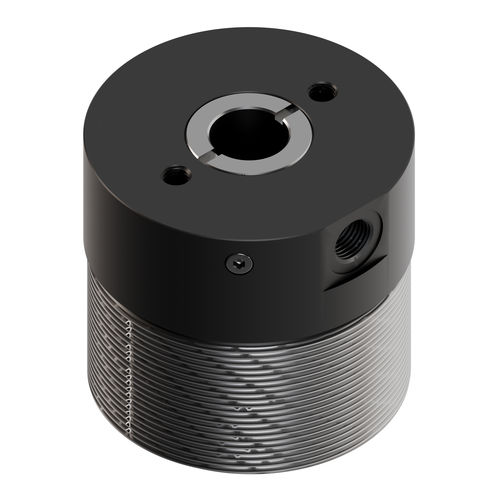

Hydraulic cylinder CB 04 series
pistonspring-returnsteel

Hydraulic cylinder - CB 04 series - A&T Fluid solutions - piston / spring-return / steel
Hydraulic cylinder - CB 04 series - A&T Fluid solutions - piston / spring-return / steel
Add to favorites
Compare this product
Go to the A&T Fluid solutions website for more information

Characteristics

Type
hydraulic
Technology
piston
Configuration
spring-return
Material
steel
Applications
industrial, clamping, for machine tools
Other characteristics
compact, high-force, high-pressure, through-hole
Stroke

Max.: 12 mm
(0.472 in)

Min.: 6 mm
(0.236 in)

Bore

48 mm, 68 mm, 83 mm
(1.89 in, 2.68 in, 3.27 in)

Pressure

Max.: 320 bar
(4,641.21 psi)

Min.: 1 bar
(14.5 psi)

Rod diameter

40 mm, 57 mm, 70 mm
(2 in, 2 in, 3 in)

Force

Max.: 12,000 kgf

Min.: 1 kgf

Operating Temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

Extremely compact dimensions Common application areas: industrial locks Mounting accessories available Custom solutions available upon request Pushing or pulling lock cylinders with a threaded through-hole that allows the insertion of easily adjustable threaded pins or tie rods. The threaded external body simplifies application and mounting on machine parts.
