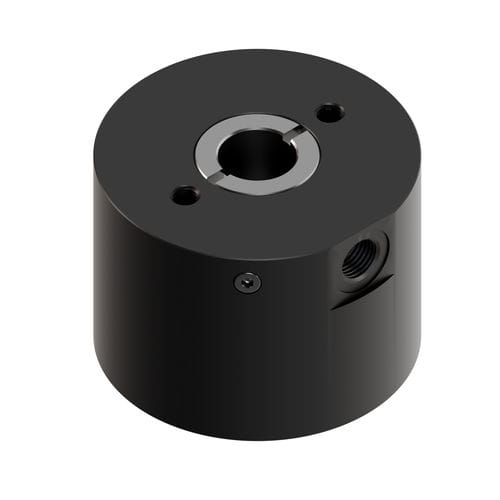

Hydraulic cylinder CB 03 seriespistonspring-returnsteel
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- spring-return
- Material
- steel
- Applications
- industrial, clamping, for the automotive industry, for agricultural machinery, for presses, for machine tools, brake, for die-casting applications
- Other characteristics
- compact, high-force
- Stroke
Max.: 12 mm
(0.472 in)Min.: 6 mm
(0.236 in)- Bore
50 mm, 70 mm, 85 mm
(1.97 in, 2.76 in, 3.35 in)- Pressure
200 bar, 320 bar
(2,900.75 psi, 4,641.21 psi)- Rod diameter
40 mm, 57 mm, 70 mm
(2 in, 2 in, 3 in)- Force
Max.: 12,000 kgf
Min.: 1 kgf
- Operating Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Extremely compact dimensions
Common application areas: industrial locks
Mounting accessories available
Custom solutions available upon request
Mold locking cylinders allow for quick and safe clamping of molds on presses and machine tools in general.
