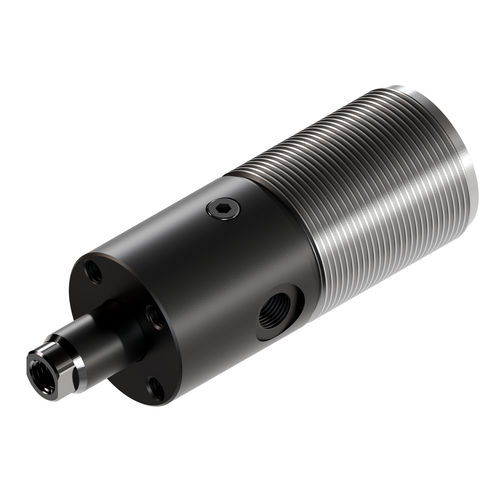

Hydraulic cylinder CB 06 series
pistonspring-returnsteel

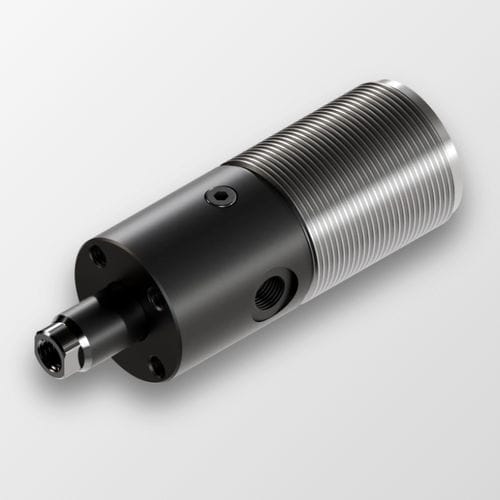

Hydraulic cylinder - CB 06 series - A&T Fluid solutions - piston / spring-return / steel
Hydraulic cylinder - CB 06 series - A&T Fluid solutions - piston / spring-return / steel
Hydraulic cylinder - CB 06 series - A&T Fluid solutions - piston / spring-return / steel - image - 2
Add to favorites
Compare this product
Go to the A&T Fluid solutions website for more information

Characteristics

Type
hydraulic
Technology
piston
Configuration
spring-return
Material
steel
Applications
clamping, for machine tools
Other characteristics
compact, threaded body
Stroke

Max.: 25 mm
(0.984 in)

Min.: 10 mm
(0.394 in)

Bore

36 mm, 48 mm, 68 mm
(1.42 in, 1.89 in, 2.68 in)

Pressure

Max.: 320 bar
(4,641.21 psi)

Min.: 0 bar
(0 psi)

Rod diameter

28 mm, 37 mm, 57 mm
(1 in, 1 in, 2 in)

Force

Max.: 6,500 kgf

Min.: 1 kgf

Operating Temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

Extremely compact dimensions Various fields of application: locking, riveting, marking, etc. Wide range of mounting options Available mounting accessories Custom solutions available upon request In these cylinders, the piston moves inward, applying a pulling force. For easier mounting, in addition to the threaded body, there are four threaded holes for coupling and flange attachment. These cylinders are commonly used in conventional, CNC, or transfer machine equipment.
