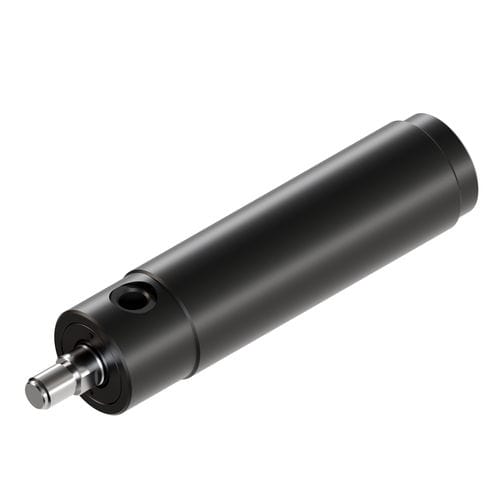

Hydraulic cylinder CB 01 seriespistonsingle-acting with return springstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- single-acting with return spring
- Material
- steel, stainless steel
- Applications
- clamping
- Other characteristics
- ultra-compact, threaded
- Stroke
5 mm, 15 mm, 25 mm
(0.197 in, 0.591 in, 0.984 in)- Bore
Min.: 20 mm
(0.79 in)Max.: 30 mm
(1.18 in)- Pressure
200 bar, 320 bar
(2,900.75 psi, 4,641.21 psi)- Rod diameter
Min.: 14 mm
(1 in)Max.: 22 mm
(1 in)- Force
Min.: 1 kgf
Max.: 750 kgf
- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)
Description
Extremely compact dimensions
Wide range of fixing options
Mounting accessories available
Custom solutions available upon request
Small-sized locking cylinders with threaded external body for easy application on equipment. Due to their small size and high thrust force, they are ideal for locking operations of small and medium-sized parts. They can be completed with special supports, rings and tips.
