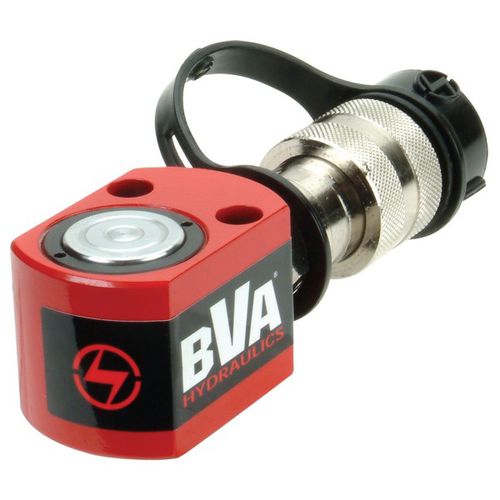

Hydraulic cylinder HF(T) seriespistonsingle-acting with return springsteel
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- single-acting with return spring
- Material
- steel, aluminum, alloy
- Applications
- industrial
- Other characteristics
- compact, positioning, standard, with adjustable cushions, flat, high-tonnage, short-travel, small, small dimension, multi-purpose, high-resistance, 2-stage
- Stroke
Min.: 6 mm
(0.236 in)Max.: 16 mm
(0.63 in)- Bore
Min.: 30 mm
(1.18 in)Max.: 159 mm
(6.26 in)- Pressure
700 bar
(10,152.64 psi)- Rod diameter
Min.: 25 mm
(1 in)Max.: 118 mm
(5 in)- Force
Min.: 49 kN
Max.: 1,385 kN
Description
BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufacturing in solid one piece alloy steel body,using polyurethane U-cup seals to provide a sure seal and longer life.
Our standard hard chrome plated piston rod protects against corrosion & damage; one piece aluminum alloy bearing protects against cylinder wall damage.
Collar threads and base mounting holes are for fixuring. All BVA cylinders come equiped with CH38F high flow coupler with dust cap for better protection.
