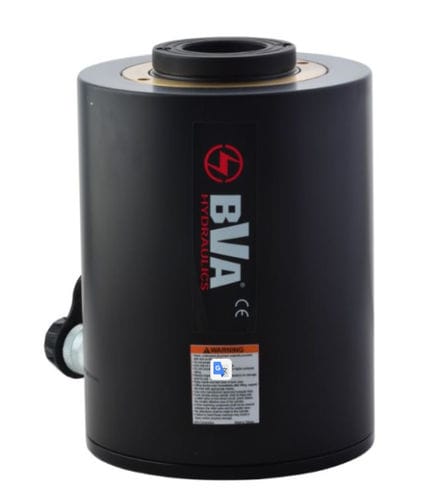

Hydraulic cylinder HUC6003

single-actingaluminumwith inner hole

UPC: 47077820155 Category: Cylinders Series: HUC Series System: Single Acting Usage: Hollow Hole Stroke: 3 in BVA Hydraulics Aluminum Hollow Hole Single Acting Cylinders operate at a maximum of 10,000 psi (700bar). Constructed from aluminum alloy, these cylinders are up to 60% lighter than steel alternatives. They are equipped with a heavy-duty compression spring and dual wipers to help prevent contamination, and come with a collar thread protector. Ideal for both pulling and pushing applications. All BVA cylinders are supplied with a CH38F high flow coupler with dust cap. Material: Aluminum Capacity: 60 ton Oil usage (push): 37 in³ Collapse height: 10.25 in Extended height: 13.25 in Effective area (push): 12.3 in² Cylinder bore: 2.13 in Outside Diameter: 7.5 in - Max Pressure: 10,000 psi (700bar) - Aluminum alloy construction (up to 60% lighter than steel) - Heavy duty compression spring - Dual wipers for contamination prevention - Collar thread protector included - Supplied with CH38F high flow coupler and dust cap - Ideal for pulling and pushing applications Technical Specifications: - Material: Aluminum - Capacity: 60 ton - Oil usage (push): 37 in³ - Collapse height: 10.25 in - Extended height: 13.25 in - Effective area (push): 12.3 in² - Cylinder bore: 2.13 in - Outside Diameter: 7.5 in
