Hydraulic cylinder HLN(F)
pistonsingle-acting load-returnsteel

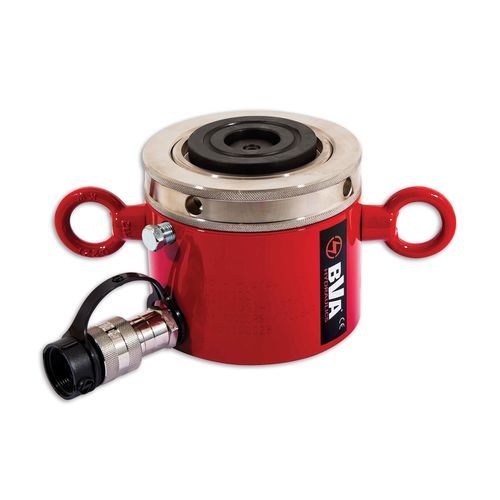

Hydraulic cylinder - HLN(F) - BVA Hydraulics - piston / single-acting load-return / steel
Hydraulic cylinder - HLN(F) - BVA Hydraulics - piston / single-acting load-return / steel
Hydraulic cylinder - HLN(F) - BVA Hydraulics - piston / single-acting load-return / steel - image - 2
Hydraulic cylinder - HLN(F) - BVA Hydraulics - piston / single-acting load-return / steel - image - 3
Hydraulic cylinder - HLN(F) - BVA Hydraulics - piston / single-acting load-return / steel - image - 4
Hydraulic cylinder - HLN(F) - BVA Hydraulics - piston / single-acting load-return / steel - image - 5
Hydraulic cylinder - HLN(F) - BVA Hydraulics - piston / single-acting load-return / steel - image - 6
Add to favorites
Compare this product
Go to the BVA Hydraulics website for more information

Characteristics

Type
hydraulic
Technology
piston
Configuration
single-acting load-return
Material
steel
Other characteristics
for heavy loads, low-profile, with lock-nut
Stroke

Min.: 45 mm
(1.772 in)

Max.: 300 mm
(11.811 in)

Bore

Min.: 94 mm
(3.7 in)

Max.: 267 mm
(10.51 in)

Pressure

700 bar
(10,152.64 psi)

Force

Min.: 496 kN

Max.: 3,919 kN

Description

BVA Hydraulics Lock Nut Cylinders work at max. 10,000 psi (700bar), designed in single acting with mechanical safety lock nut, supporting loads without hydraulic pressure, and applying load return. Overflow port prevents cylinders from over travel. Solid steel body & electroless nickel plated rod to resist corrosion and rust. All BVA cylinders come equipped with a CH38F high flow coupler with dust cap.
