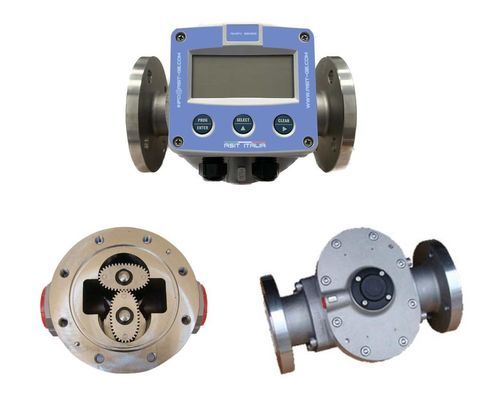

Gear flow meter AI.MPV-01volumefor oilfor fuel
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Type
- volume
- Fluid
- for oil, for fuel, for high-viscosity liquids
- Pipe diameter
- DN50 - 2", DN25 - 1", DN15 - 1/2", DN80 - 3", DN100 - 4", DN40 - 1"1/2, DN10 - 3/8", DN8 - 1/4"
- Installation
- flange, threaded
- Material
- stainless steel, plastic, PTFE
- Communication
- 4-20 mA, RS485, Modbus, analog output, with pulse output, HART
- Supply voltage
- 230VAC, 115VAC
- Protection level
- IP67, NEMA 4X
- Applications
- industrial, for the pharmaceutical industry, for the food industry, for pumping applications, for the petrochemical industry, high-pressure, for water treatment, for filling applications, for high flow rates, for the beverage industry, for tanks, for hydraulic applications, for the oil and gas industry, for marine applications, irrigation, for harsh environments
- Other characteristics
- digital, precision, with display, electronic, programmable, high-temperature, with indicator-totalizer
- Volumetric flow rate
Max.: 90,000 l/h
(396.2581 us gal/h)Min.: 2 l/h
(0.5283 us gal/h)- Process temperature
150 °C
(302 °F)- Process pressure
Max.: 34 bar
(493.13 psi)Min.: 15 bar
(217.56 psi)- Precision
1 %
- Repeatibility
0.03 %
Description
The AI.ADF series represents excellence in precision volumetric measurement for highly viscous fluids. Thanks to oval gear technology, these instruments offer extreme accuracy, better than 0.5%, ideal for monitoring oils, diesel fuel, and dense chemicals.
Why choose the AI.ADF series?
Viscosity-Independent Accuracy: Unlike other technologies, the measurement is not affected by changes in fluid density or viscosity, ensuring consistently reliable data.
Rugged and Customizable Construction: Available with an AISI316 stainless steel body for corrosive fluids or an aluminum body for standard applications.
Modular Electronics: Choose from various configurations (F012, F030, F110, F130) for a simple totalizer, a system with analog outputs, or a batch dosing controller.
Quality Certification: Each meter comes with an individual test report certifying its accuracy before delivery.
Common Applications
This type of meter is the preferred choice in the following industries:
Oil & Gas: Measurement of diesel fuel, naphtha, lubricating oils, and heavy naphtha
Automation and Dosing: Thanks to the F030/F130 modules, it is perfect for precise container filling or additive dosing.
Chemical Industry: Monitoring of aggressive process fluids (AISI 316 version).
Available Configurations
In addition to the mechanical unit, backlit LCD displays with Modbus ASCII/RTU protocols or RS232/RS485 interfaces can be integrated for immediate integration into company control systems.
Why choose the AI.ADF series?
Viscosity-Independent Accuracy: Unlike other technologies, the measurement is not affected by changes in fluid density or viscosity, ensuring consistently reliable data.
Rugged and Customizable Construction: Available with an AISI316 stainless steel body for corrosive fluids or an aluminum body for standard applications.
Modular Electronics: Choose from various configurations (F012, F030, F110, F130) for a simple totalizer, a system with analog outputs, or a batch dosing controller.
Quality Certification: Each meter comes with an individual test report certifying its accuracy before delivery.
Common Applications
This type of meter is the preferred choice in the following industries:
Oil & Gas: Measurement of diesel fuel, naphtha, lubricating oils, and heavy naphtha
Automation and Dosing: Thanks to the F030/F130 modules, it is perfect for precise container filling or additive dosing.
Chemical Industry: Monitoring of aggressive process fluids (AISI 316 version).
Available Configurations
In addition to the mechanical unit, backlit LCD displays with Modbus ASCII/RTU protocols or RS232/RS485 interfaces can be integrated for immediate integration into company control systems.
