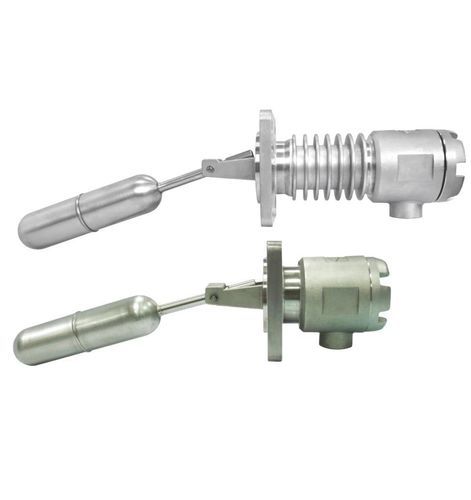

Broken finger float level switch AI.LT202electromechanicalfor liquidsfor the food industry
Add to favorites
Compare this product
Characteristics
- Technology
- broken finger float, electromechanical
- Medium
- for liquids
- Applications
- for the food industry, for tanks, for chemicals, for silo, for the pharmaceutical industry, sanitary, for pump control, for hygienic applications, overflow, for septic tanks, for marine applications, automotive
- Approvals
- CE
- Material
- stainless steel
- Mounting
- flange, side-mount, horizontal, insertion
- Other characteristics
- high-temperature, IP65, SPDT
- Process temperature
Max.: 350 °C
(662 °F)Min.: -20 °C
(-4 °F)- Process pressure
4.5 MPa
Description
AI.LT202 is a float level switch designed for precise and reliable liquid control in horizontal installations. Thanks to its magnetic coupling mechanism, this device actuates a microswitch to provide an ON-OFF signal, making it ideal for industrial automation and tank safety.
Main Features
Magnetic Reliability: The movement of the float activates the contact via a watertight magnetic coupling, ensuring insulation and durability.
Thermal Versatility: Available in a standard version (up to +150°C) or with a cooling fin for high-temperature environments up to +350°C.
Rugged Construction: Made with stainless steel (SS316 or SS304) wetted parts and an IP65-rated enclosure.
High Pressure Resistance: Supports operating pressures up to 3.0Mpa, with options available up to 4.5Mpa.
Main Features
Magnetic Reliability: The movement of the float activates the contact via a watertight magnetic coupling, ensuring insulation and durability.
Thermal Versatility: Available in a standard version (up to +150°C) or with a cooling fin for high-temperature environments up to +350°C.
Rugged Construction: Made with stainless steel (SS316 or SS304) wetted parts and an IP65-rated enclosure.
High Pressure Resistance: Supports operating pressures up to 3.0Mpa, with options available up to 4.5Mpa.
Catalogs
AI.LT202
5 Pages
