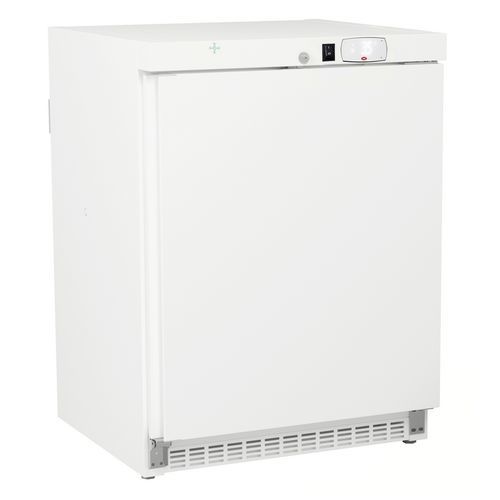

Laboratory refrigerator MPR EVO

for pharmaceutical applicationsuprighton casters

Presentation
The Linea EVO laboratory and pharmacy refrigerators (MPR-130 and MPR-460), with gross capacities of 130 L and 460 L respectively, are designed to provide precise temperature control and reliable performance. Temperature maintenance complies with DIN 13277 and is factory-verified using 9 sensors positioned inside the chamber.

Versions and equipment

• Available with double-glazed glass door or solid door.
• Automatic internal temperature recorder.
• 12-hour backup battery preserving alarms, measurements and recordings in case of power loss.
• Power-failure (blackout) alarm.
• Security lock and option to change door opening direction.
• Rear wheels and adjustable leveling system for easy positioning.
• Intelligent digital LCD controller with memory for max/min temperatures and audible/visual alarms for out-of-range temperatures, door open or probe error.
• Internal LED lighting with automatic activation at door opening or via external switch.
• 15 mm cable port for external temperature probe.

Performance and use
Dynamic refrigeration with automatic defrost and condensate evaporation. Designed for simple operation and low maintenance; suitable for laboratory and pharmacy applications requiring reliable thermal control.

Product data

• Code nr. 19108376 - MPR-130 EVO, gross internal capacity 130 L, double-glazed glass door.
• Code nr. 19111803 - MPR-130 EVO, gross internal capacity 130 L, solid door.
• Code nr. 19108377 - MPR-460 EVO, gross internal capacity 460 L, double-glazed glass door.
• Code nr. 19111795 - MPR-460 EVO, gross internal capacity 460 L, solid door.

Available accessories

• Additional shelves.
• IQ/OQ/PQ manuals and other technical documentation (optional accessories).

Technical specifications

• Designed for precision and full equipment for laboratory and pharmacy use.
• Versions: double-glazed glass door or solid door.
• Available capacities: 130 L (MPR-130) and 460 L (MPR-460).
• Compliance: according to DIN 13277 and strict international standards.
• External and internal structure in white painted steel, resistant and easy to clean.
• Metal shelves with plastic finish, height-adjustable (3 shelves supplied for MPR-130; 5 supplied for MPR-460).
• High-quality thermal insulation.
• Digital LCD controller with min/max temperature memory and visual/acoustic alarms.
• Settable temperature range: 2°C ÷ 8°C.
• Integrated automatic internal temperature recorder.
• 12-hour backup battery to preserve data and recordings in case of blackout.
• Alarms for power loss, door open, probe error and out-of-range temperatures.
• Safety thermostat to prevent temperature drops greater than 2°C from the setpoint.
• Security lock and reversible door opening.
• 15 mm cable port for external probe.
• Internal LED lighting with automatic activation or via switch.
• Dynamic refrigeration with automatic defrost and condensate evaporation.
• RS485 data output, NFC support and remote monitoring preparation.
• Climate class 4: operation up to 32°C ambient and relative humidity up to 60%.
• Refrigerant: CFC-free.
• Noise emissions: <50 dB.
• External dimensions (W x D x H): 626 x 600 x 850 mm (MPR-130); 626 x 740 x 1865 mm (MPR-460).
