Calculation server RS720-E8-RS24-ECP

storageRAIDdatabase

Overview

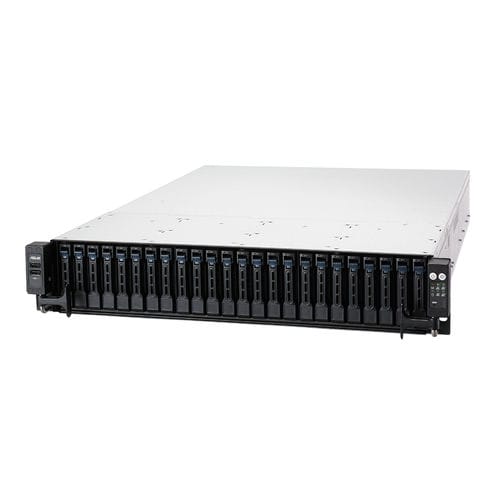

RS720-E8-RS24-ECP is a 2U rack server engineered for high-capacity storage and compute-intensive enterprise workloads. It offers 24 hot-swappable 2.5-inch SAS/SATA drive bays, flexible OS drive placement with an M.2 slot and two rear hot-swappable 2.5-inch SSD bays, and modular components for improved serviceability and uptime.

Key Features
Scalable 2U platform optimized for dense 2.5-inch storage. Supports mixed SAS/SATA media and provides multiple OS drive options for flexible deployment in datacenters and enterprise environments.

High speed storage and OS disk options
The server includes 24 hot-swappable 2.5-inch SAS/SATA drive bays for accelerated transfer rates. OS installation and serviceability are simplified by one M.2 slot and two rear hot-swappable 2.5-inch SSD bays. The configuration suits data analytics, cloud services, database and business-critical applications that require fast storage I/O.

Expansion
High expandability with five available expansion slots:

• 3 x PCIe x16 slots (Gen3 x16 link)
• 1 x PCIe x8 slot (Gen3 x8 link)
• 1 x PCIe x8 slot (Gen3 x4 link)

Supports diverse add-on cards for storage, networking and acceleration. Compatible options include ASUS PIKE II and ASUS 10G LAN cards.

ASUS PIKE II & 12G SAS integration
ASUS PIKE II adds 12Gb/s SAS support over a PCIe 3.0 interface, enabling both 6Gb/s SATA and 12Gb/s SAS devices and integrated RAID functions. Multiple HBAs support multipathing to increase throughput and resilience.

Advanced cooling
The chassis implements two fan groups (two fans per group): one group dedicated to CPUs with dynamic speed control and one group for the remainder of the system. Manual fan-speed adjustment is supported to adapt cooling to operational conditions and improve thermal efficiency.

Selected components and power
Design uses industry-grade components such as ASUS Beat Thermal Chokes and Dr. MOS. Power is provided by 1+1 redundant 800W 80 PLUS CRPS Platinum power supplies, delivering up to 94% efficiency and uninterrupted operation in redundant configurations.

Remote management
On-board remote management is provided via an IPMI 2.0-compliant ASMB8-iKVM module. ASUS Server Web-based Management (ASWM) Enterprise supplies a web GUI for centralized administration, remote BIOS flashing, screen recording for troubleshooting and one-to-many management.

Notes
Hot-swappable drives for serviceability and high availability. Product intended for datacenter and enterprise storage/network deployments. Product status: EOL indicated on product page.

Technical specifications

• Form factor: 2U rack server
• Drive bays: 24 x 2.5-inch SAS/SATA hot-swappable drive bays
• OS drive options: 1 x M.2 slot; 2 x rear hot-swappable 2.5-inch SSD bays
• Expansion slots: 3 x PCIe x16 (Gen3 x16 link), 1 x PCIe x8 (Gen3 x8 link), 1 x PCIe x8 (Gen3 x4 link) — total 5 slots
• ASUS PIKE II support: 12Gb/s SAS support; PCIe 3.0 interface; supports 6Gb/s SATA and 12Gb/s SAS; integrated RAID
• Cooling: Two fan groups (each with two fans); one group dedicated to CPUs with variable speed; manual fan speed adjustment supported
• Power: 1+1 redundant 800W 80 PLUS CRPS Platinum power supplies; up to 94% efficiency
• Management: ASMB8-iKVM (IPMI 2.0-compliant); ASWM Enterprise web GUI with remote BIOS flashing and screen-recording; one-to-many centralized management
• Target applications: Data analytics, cloud computing, data management, business-critical workloads, datacenters
• Serviceability: Hot-swappable design for drive maintenance and high availability
• Product status indicator: EOL (End of Life) shown on product page
